Description

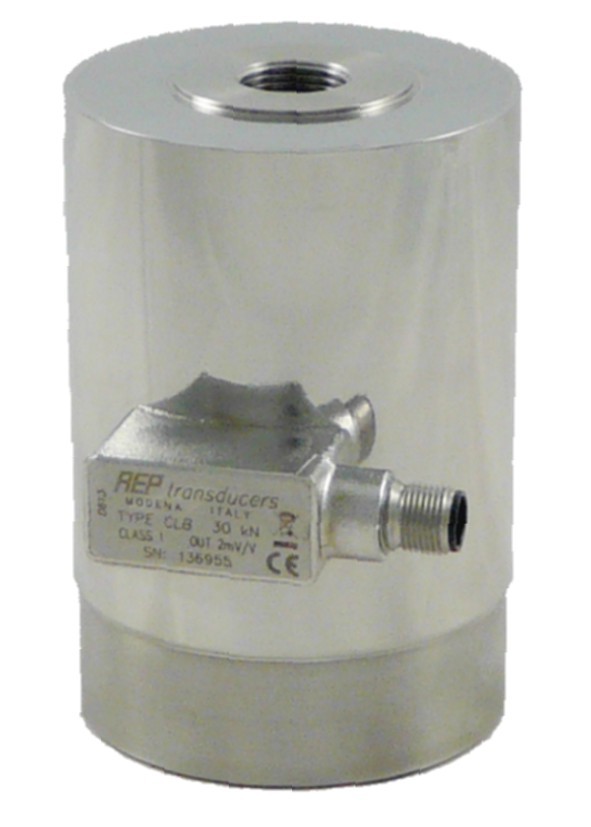

Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION
Nominal Load from 30 kN to 600 kN
Class (ISO 376) 00, 0.5 and 1
Linearity and Hysteresis 0,03%
Output: 2mV/V
Column force transducer suitable for the calibration of material testing machines
High mechanical resistance
Completely made of stainless steel
Completely LASER welded
Degree of protection IP67
Long term stability
Assesories

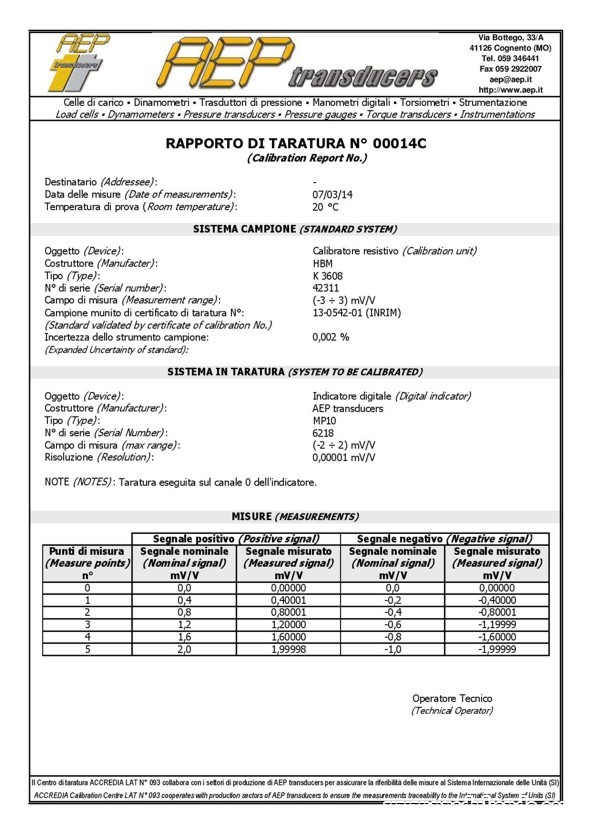

| Calibration Report COMPRESSION Calibration Report TENSION |
 |
ACCREDIA certificate COMPRESSION ACCREDIA certificate TENSION ACCREDIA certificate BIDIRECTIONAL |
 |

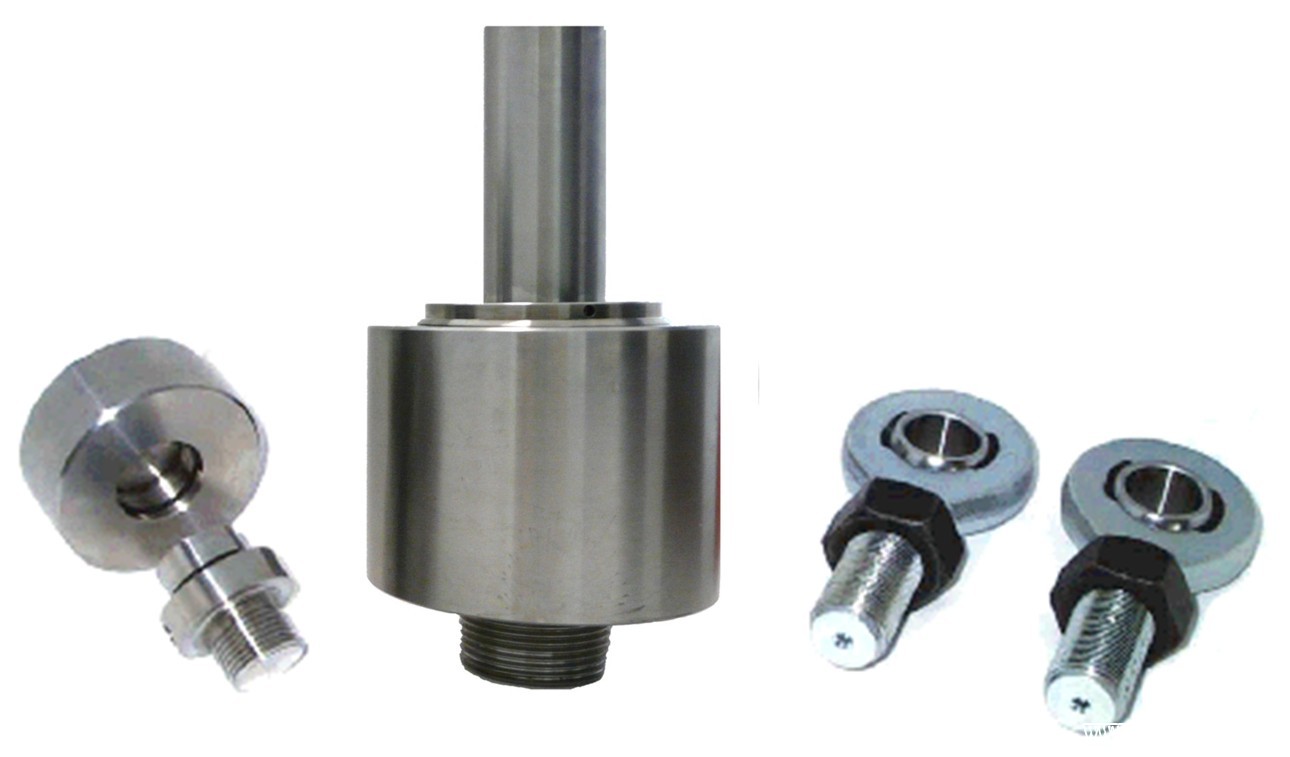

Joints to be used for COMPRESSION application Loading head (TIC) Spherical loading head (CTS)
|
|
Knuckle joints (ACCEM) TENSION |
