Force transducer suitable for the calibration of material testing machines and metrological comparisons between laboratories.
Excellent metrological features stated by the Metrological Research National Institute (I.N.RI.M.).
High stability given by monolithic structure.
Structure optimization thanks to the F.E.M. design.
Off-center loads compensation ±0.005% F.S.
Low sensitivity to supporting surfaces ±0.002% F.S.
Easy application for tension and compression.
Easy to handle thanks to its light weight (1MN about 36kg).
ASSESORIES

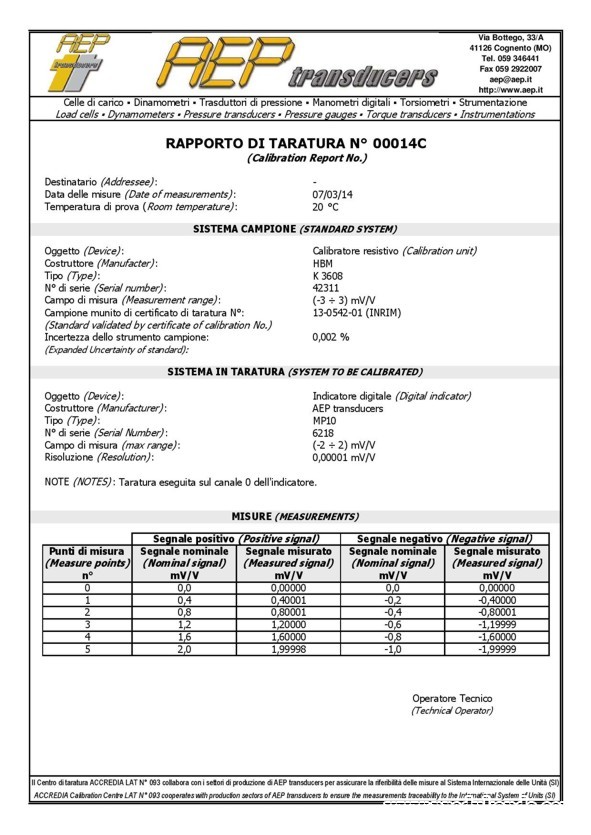

| Calibration Report COMPRESSION Calibration Report TENSION |
 |
ACCREDIA certificate COMPRESSION ACCREDIA certificate TENSION ACCREDIA certificate BIDIRECTIONAL |
 |

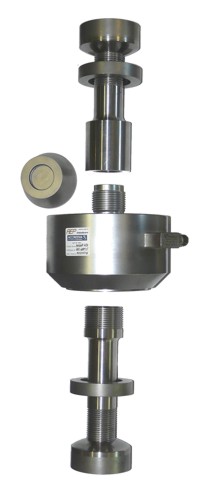

For COMPRESSION applications Loading head (TIC) Load base Tension screw for TENSION applications |
 |
For COMPRESSION applications Loading head (TIC) For TENSION applications No. 2 rods with ball joints |
 |
Aluminum cases for transport |
