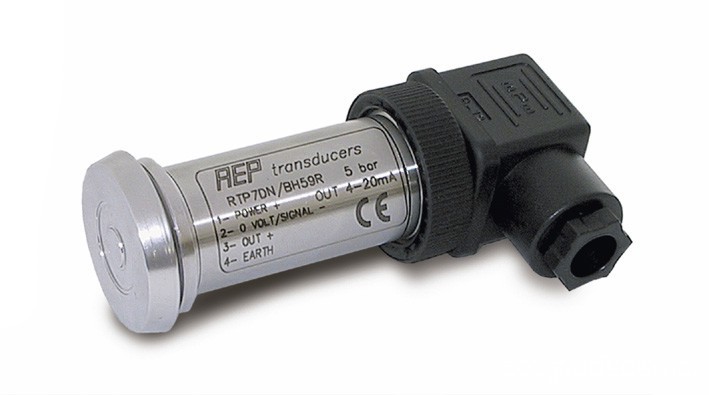

Pressure transmitters belonging to TP7DN series, born to solve problems in food industrial sectors, are now commonly used in those productive processes where pressure or level measurements of dense substances are required.
Protruding diaphragm enable to perform an accurate cleaning of the sensor and to prevent from forming of residuals on the measuring area.
The pressure transmitters of this series are characterized by high reliability and long-term stability.
High mechanical strength, suitable for dynamic applications.
The sensitive part in contact with pressure, is entirely made of 17-4 PH stainless steel resistant to corrosion.
Protection class IP65
Process coupling DN20
Connector standard DIN 43650
Internal adjustment of ZERO
Power supply 12 to 24 Vdc
