Description

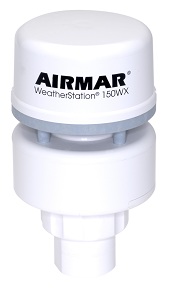

The WX Series WeatherStation® instruments meet a growing need for real-time, site-specific weather information. For moving applications where true and apparent wind are different, the 150WX is recommended and includes additional sensors such as a 10Hz GPS, solid-state compass, tilt sensors and a field replaceable relative humidity sensor. This model features configurable RS232, RS422 and CAN BUS digital data outputs, providing unparalleled versatility for all your weather monitoring needs.
The many new benefits of the WX Series include:
•Removable humidity sensor that is field serviceable
•IPX6 waterproof rating (units with the relative humidity module are IPX4 waterproof rated)
• New power supply featuring a 50% reduction in current draw for use in remote locations that use solar or battery power
• Wider operating voltage range of 9-40 VDC
• Adjustable, unfiltered wind data for monitoring maximum gust conditions
• Output via a single cable (various lengths available) for power and either RS232
(NMEA 0183) or RS422 (NMEA 0183) and CAN BUS (NMEA®2000) data interface
• WeatherCaster™ PC software for viewing and customizing data sentences
• Low-cost, easy to install units either permanently or as a portable system. Units can be installed on a standard pole with 1”-14 UNS or ¾” NPT threads
Features
- Wind speed & direction
- 10 Hz GPS
- Solid state compass
- 3-axis accelerometer
- Ultrasonic wind readings
- Optional relative humidity
- Barometric pressure
- Air temperature
- wind chill
- Optional heater
