Applications
- Level measurement in chemically aggressive environments
- Automation control
- Food and beverage processing
- Proximity sensing
- Obstacle avoidance
Highlights
- Best Operating Frequency: 75 kHz, ±4%
- Minimum Transmit Sensitivity at Best Transmit Frequency: 110 dB re, 1µPa/V at 1 m
- Minimum Receive Sensitivity at Best Receive Frequency: -160 dB re 1V/µPa
- Minimum Parallel Resistance: 150 Ω, ±30%
- Minimum and Maximum Sensing Range*: 20 cm to 10 m
- Typical Sensing Range: 25 cm to 7 m
- Free (1 kHz) Capacitance: 1,850 pF, ±20% pF
- Beamwidth (@ -3 dB Full Angle): 14°, ±2°
- Maximum Driving Voltage (2% Duty Cycle Tone Burst): 1,000 Vpp
- Operating Temperature: -40°C to 90°C
- Weight: 50 g
- Housing Material: Kynar® 720
- Acoustic Window: Kynar® 720
*Pulse-Echo Mode. Minimum and maximum ranges are best case scenarios. Actual range may vary, depending on drive circuitry and signal processing.

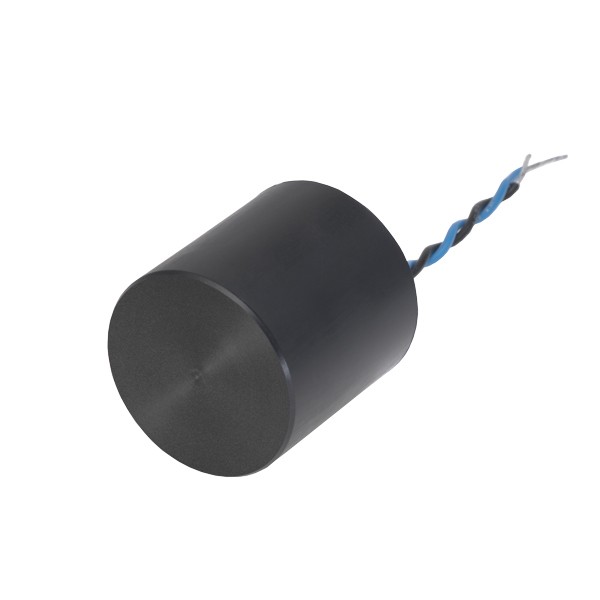

Features
- Rugged one-piece PVDF housing is U.S FDA compliant
- Cylindrical design allows for installation in various applications
Options
- Temperature sensor
