Detailed Description
Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! CHIRP transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.
A tilted element model in the CHIRP Thru-Hull product line, the B75H CHIRPS across the following bandwidths:
H Model – High Frequency 130-210 kHz
The B75 M and H Model are available in 0°, 12° and 20° tilted versions
Features
- Depth & fast-response water-temperature sensor
- High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth

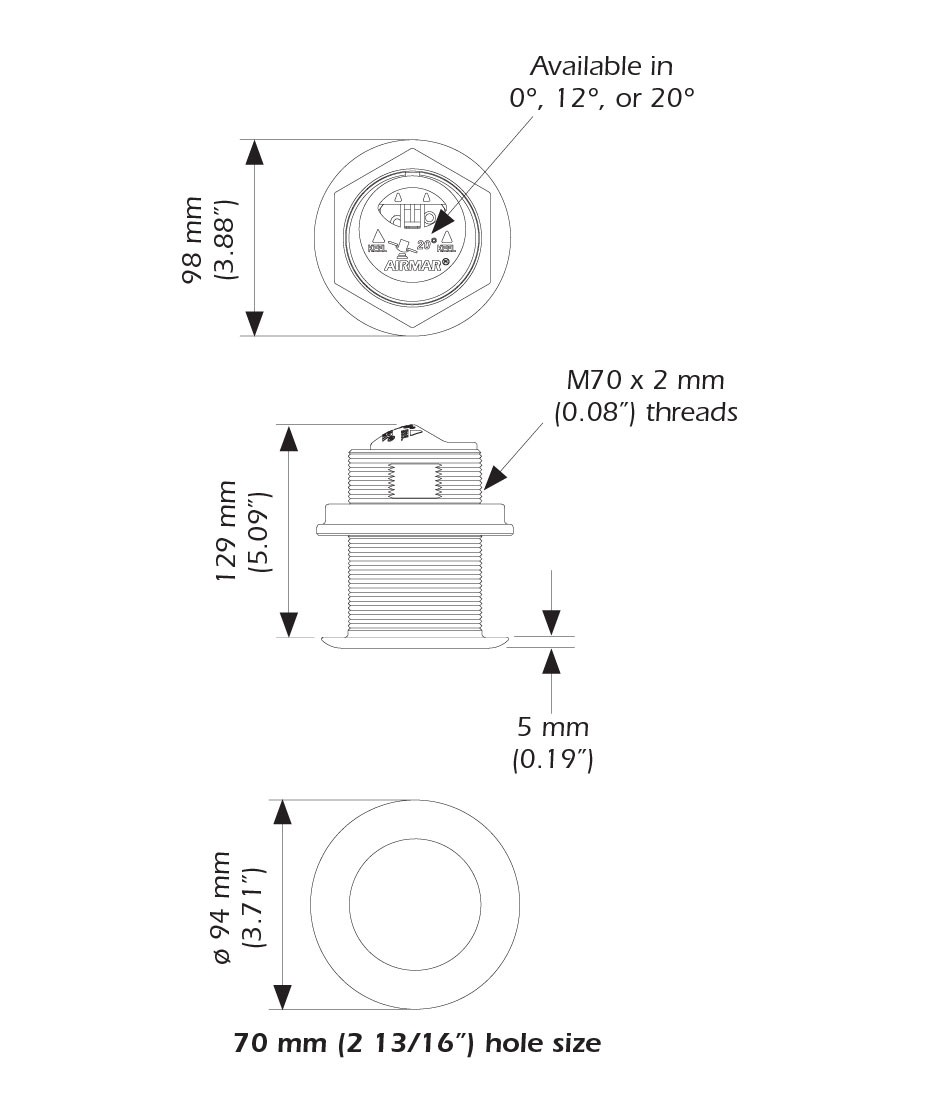

- Available in 0°, 12°, or 20° tilted versions
- 80 kHz of total bandwidth from one transducer
- Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth

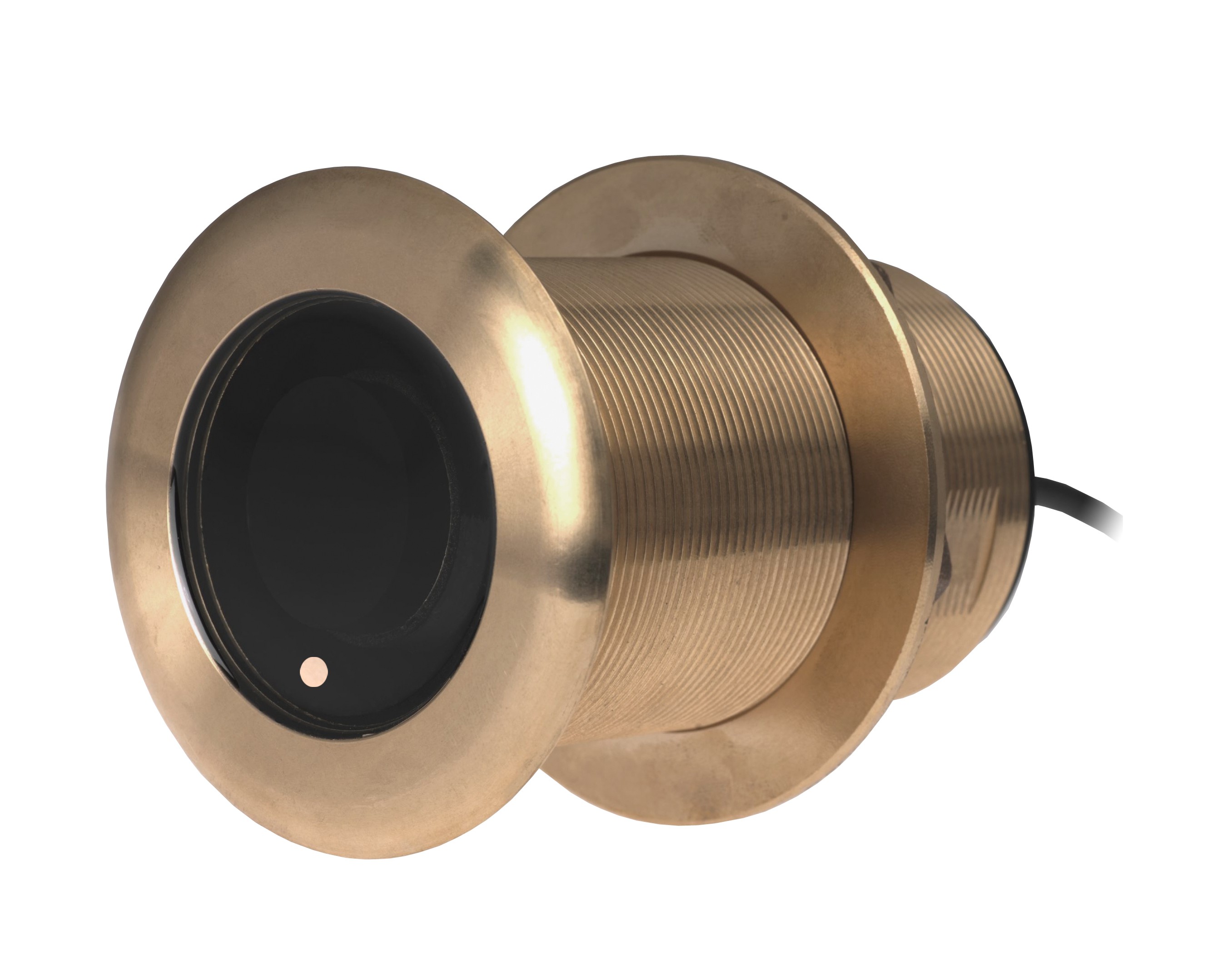

- Bronze transducer housing
- Boat Size: Up to 8 m (25’)
- Hull Type: Fiberglass or wood
Specifications
- Hull Deadrise: Up to 24°
- Acoustic Window: Urethane
- Weight: 1.4 kg (3 lb)
Technical Data
Transducer Designations:
H: 130-210D
