Detailed Description
Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! CHIRP transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 70 kHz of total bandwidth in just one installation, saving customers time and money.

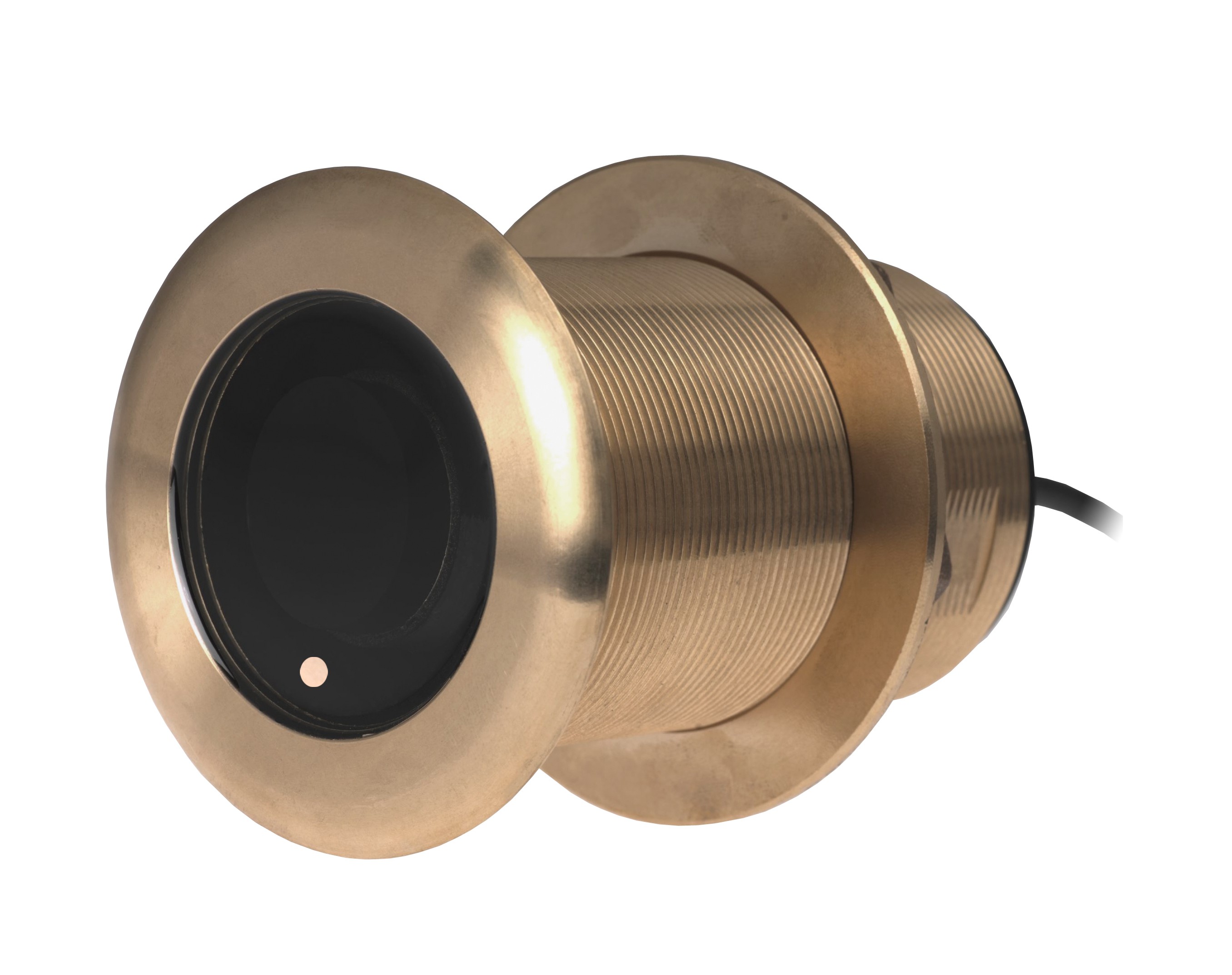

A tilted element model in the CHIRP Thru-Hull product line, the B75M CHIRPS across the following bandwidth:
M Model - Medium Frequency 80-130 kHz
Features
- Depth & fast-response water-temperature sensor
- Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth

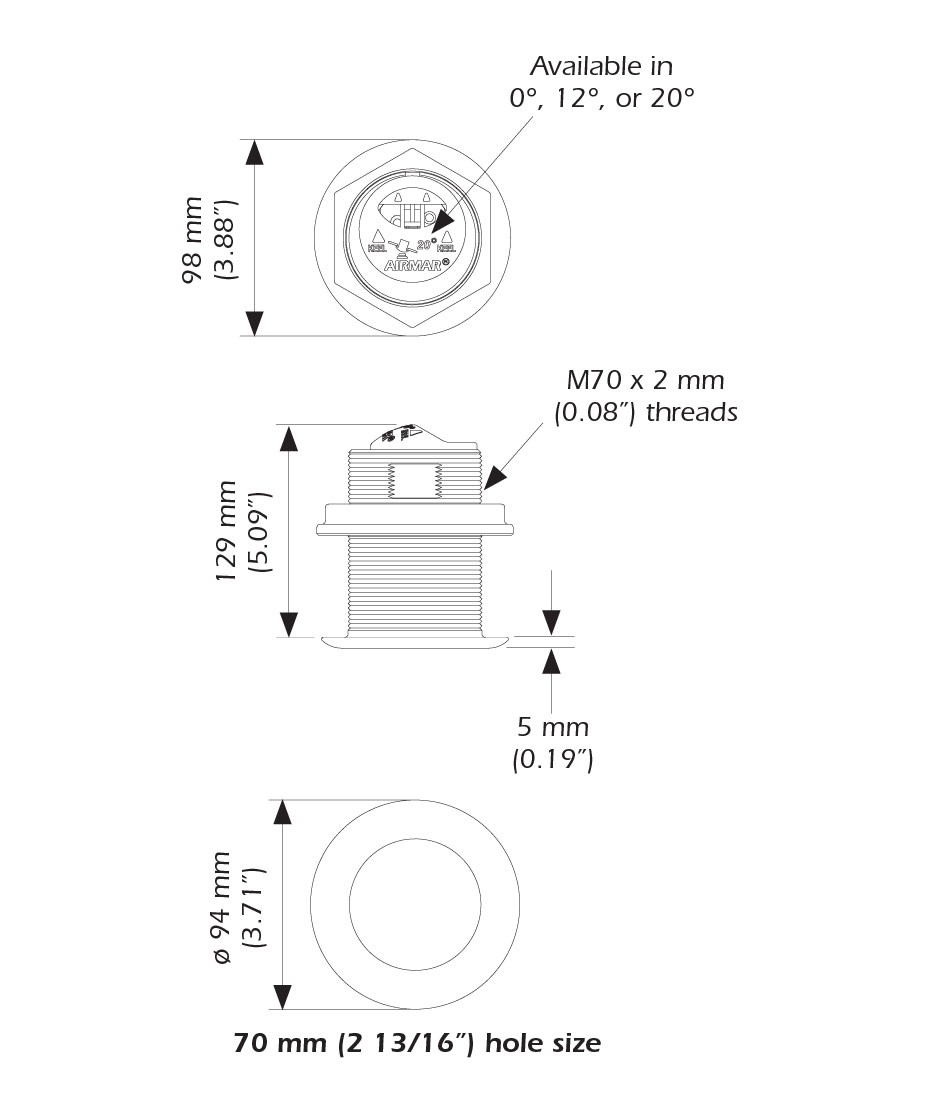

- Available in 0°, 12°, or 20° tilted versions
- 50 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
- Bronze transducer housing
- Boat Size: Up to 8 m (25’)
- Hull Type: Fiberglass or wood
Specifications
- Hull Deadrise: Up to 24°
- Acoustic Window: Urethane
- Weight: 1.4 kg (3 lb)
Technical Data
Transducer Designations:
M: 80-130A
