Features
- Depth & fast-response water-temperature sensor
- Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
- High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth
- 115 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
- All the advantages of the larger Thru-Hull CHIRP transducers, suitable for smaller boats

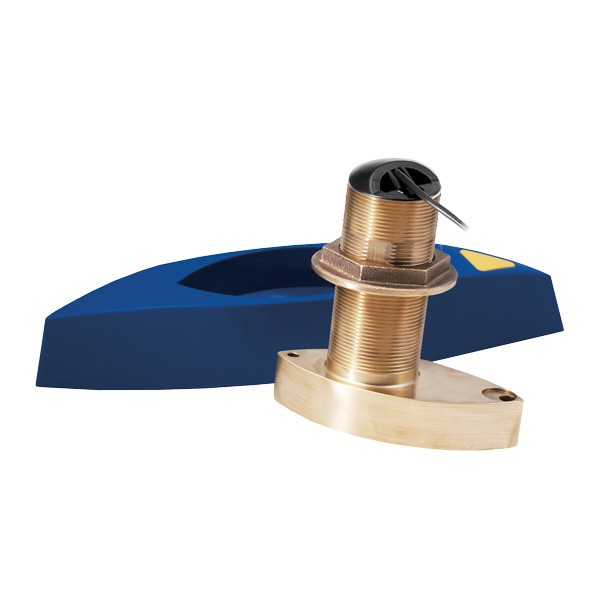

- Bronze transducer housing with High-Performance Fairing
- Boat Size: Up to 9 m (30’) and above
- Hull Type: Fiberglass or wood
Specifications
- Hull Deadrise: Up to 24° with a fairing
- Acoustic Window: Urethane
- Weight: 2.5 kg (5.5 lb)
Technical Data
Transducer Designation:
L/H: 40-75A / 130-120C
