Detailed Description

As CHIRP continues to redefine recreational fishing, AIRMAR has expanded the lineup of broadband transducers to satisfy the growing demand for this game changing technology. New to the market is the B785M, an economical CHIRP transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80-130 kHz, these transducers reveal fish in shallow, murky waters at medium depths (up to 900 feet*) along with ultra-clear target resolution..

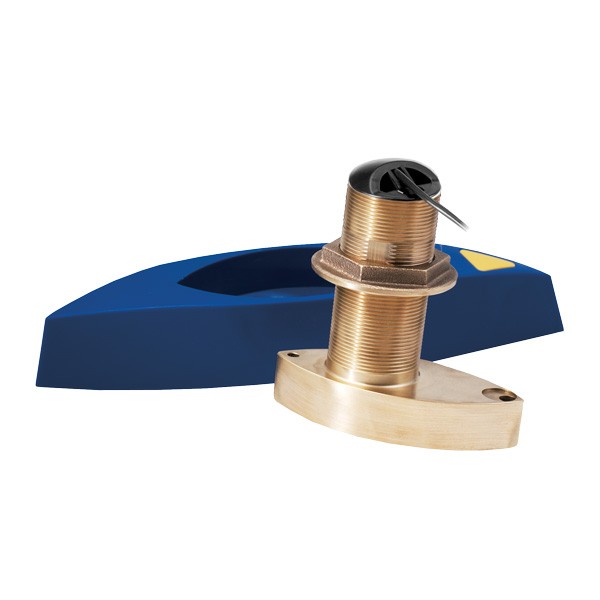

A Thru-Hull CHIRP transducer perfectly suited for smaller fishing boats, the B785M CHIRPS across the following bandwidth:

M Model - Medium Frequency 80-130 kHz



Features

• Depth and Temperature
• 80-130 kHz Frequency
• Bronze housing
• 600 W
• 24°-16° Beamwidth

Specifications

• Weight:
• Hull Deadrise: 2° to 20°
• Acoustic Window: Urethane

Technical Data

Transducer Designation:
M: 80-130A
