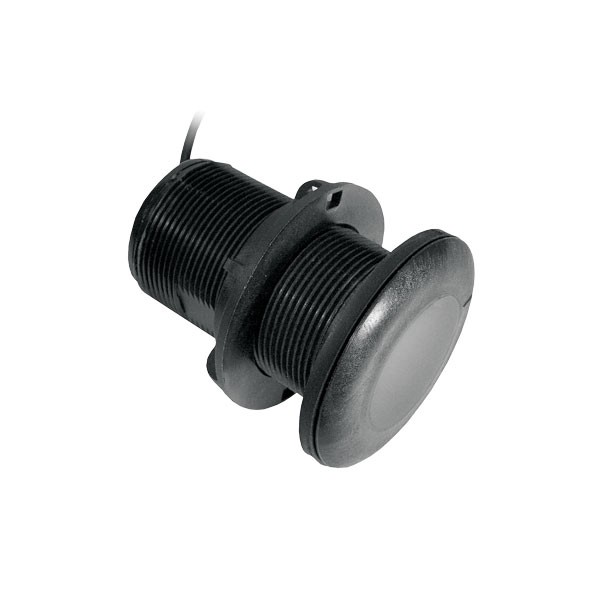

Airmarr P19 Traditional/CW

Harga :

CALL

Merk :

Airmarr

Pengiriman :

3 hari sejak pembayaran

Lokasi :

Jawa Barat - Bekasi

Dilihat :

296 Kali

Update Terakhir :

26-05-2016 09:19

Dapatkan Spesifikasi Harga Airmarr P19 Traditional/CW Produk Terbaik dari ANDALAN PRIMA SEJAHTERA LABORATORY EQUIPMENT, CHEMICAL, GLASWARE, MEASURING AND TEST

Detail Produk

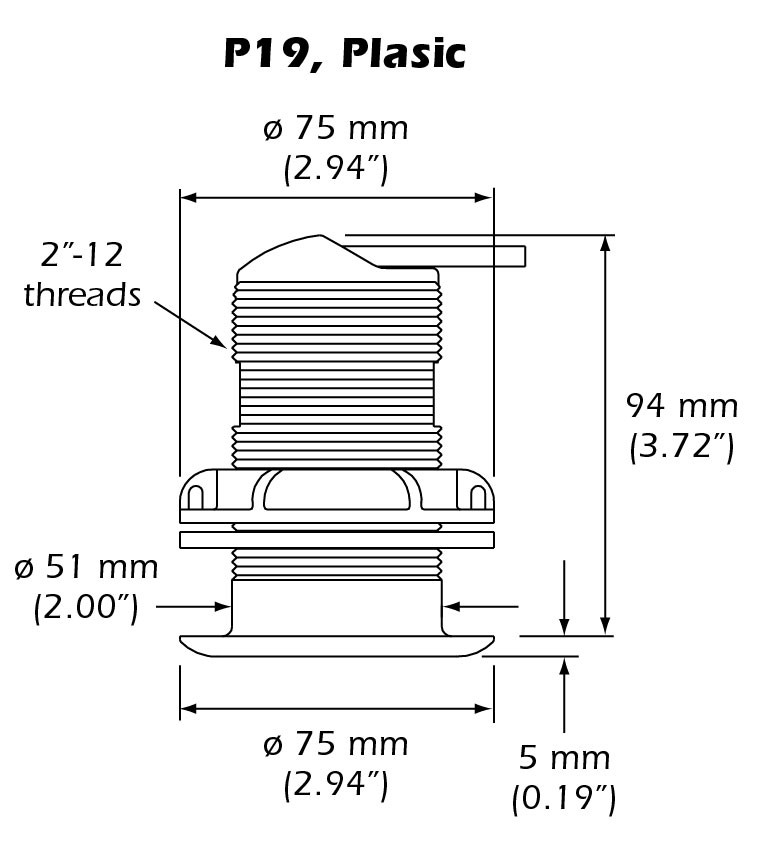

The Tilted¬™ Element, P19-12º and P19-20º provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in deadrise compensation. The resulting vertical beam gives excellent echo returns for more accurate depth readings. The P19 without tilt has been the industry standard for many years—the choice when the hull's deadrise angle is minimal. All versions have a nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Manufacturer Part Numbers
Garmin—010-10218-00——Airmar—31-682-2-02
Lowrance—021-0074-00——Airmar—31-392-2-01

Features

Depth only or Depth and temperature
Fixed 20° tilted versions for 16° to 24° hull deadrise
Fixed 12° tilted versions for 8° to 15° hull deadrise
Fixed 0° tilted versions for 0° to 7° hull deadrise
Right angle cable exit offers low headroom and protection when transducer is stepped on
Included rubber washer allows tightening of the hull nut to irregular hull surfaces
Housings are ABYC H-27 compliant
Optional temperature sensor
Plastic or bronze housings available
Boat Size: Up to 9 m (30’)

Specifications

Weight:
- Plastic—0.5 kg (1.1 lb)
- Bronze—0.9 kg (2.0 lb)
Hull Deadrise: Up to 24°
Acoustic Window: Urethane

Hole Diameter: 51 mm (2”)
