Detailed Description

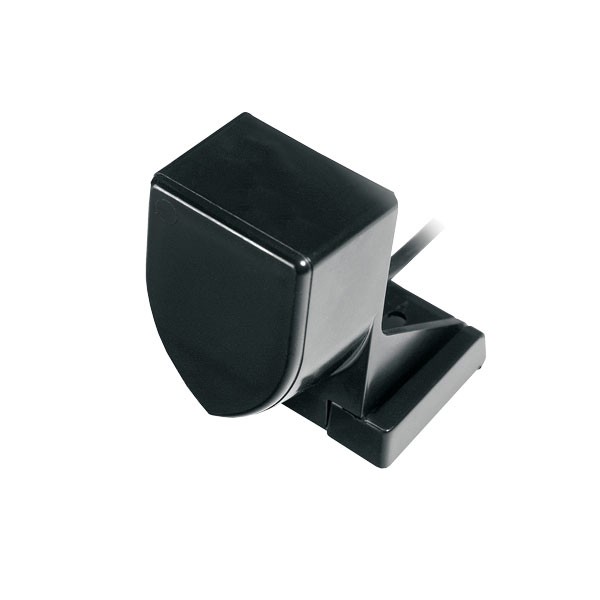

The P23 is our smallest, entry-level, transom-mount transducer. Its release bracket "kicks up" to protect the housing from impact damage for a longer life. The transducer can also be used as a portable or trolling-motor mounted unit.

Manufacturer Part Numbers
Garmin—010-10105-00——Airmar—31-304-1-42


Features

• Impressive noise shielding in a compact, economical transducer
• Depth only
• Release bracket “kick-up” to protect the housing from impact damage for longer transducer life
• Portable bracket is available for small watercraft

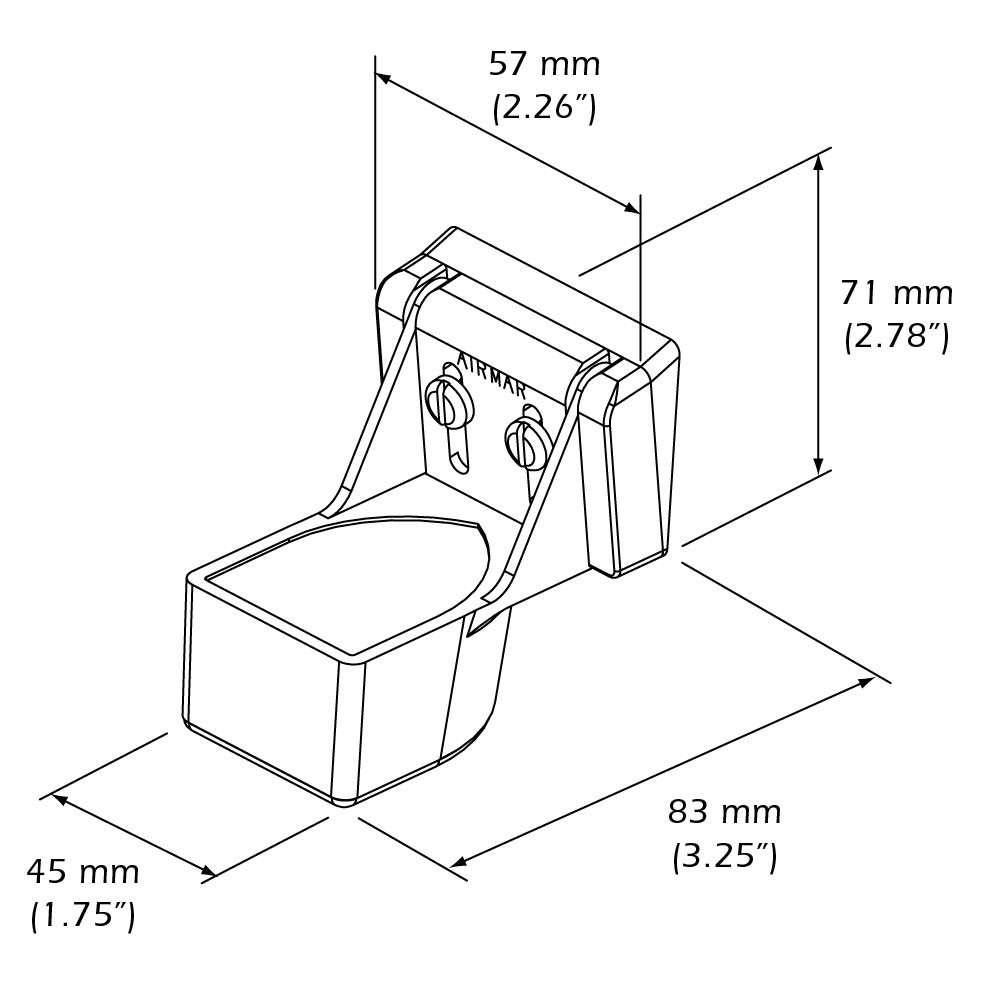

• Bracket vertical adjustment: 19 mm (3/4”)
• Optional temperature sensor
• Chemical and impact resistant plastic housing

Specifications

• Weight: 0.3 kg (0.7 lb)
• Transom Angle: 3° to 20°
• Acoustic Window: Layered plastic epoxy (LPE)
