Detailed Description

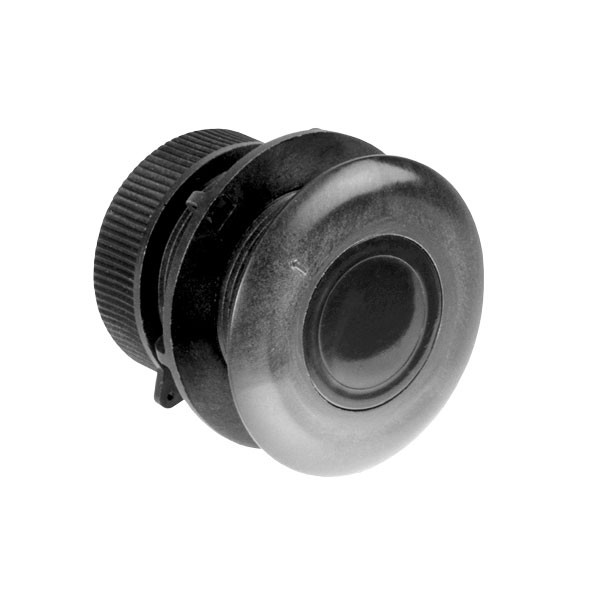

The plastic P8 and P208 are our smallest retractable-depth models. As part of our Shorty™ Series, they are designed for boats with limited headroom. The low-profile P8 model is nearly flush and minimizes drag with only 5 mm (3/16") extending outside of the hull. The P208 mounts flush, eliminating turbulence for exceptional high-speed performance


Features

• Depth only
• Shorty series low-profile is designed for fiberglass and aluminum hulls with low headroom

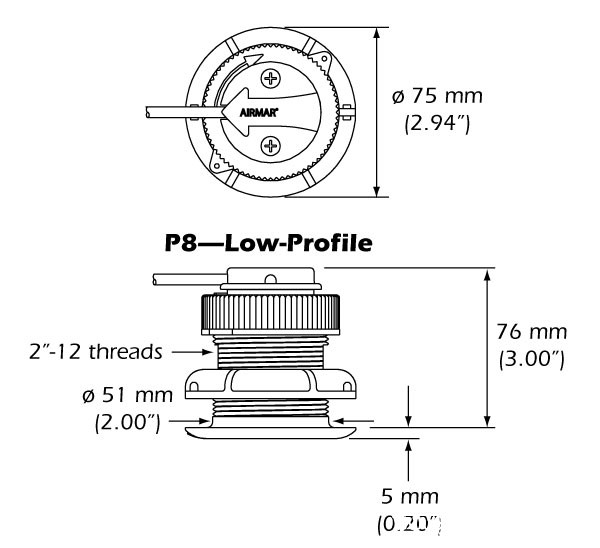

• Total height is only 76 mm (3.00”)
• Right angle cable exit offers low headroom and protection when transducer is stepped on
• Housings are ABYC H-27 compliant
• Self-jacking transducer insert is easily removed from housing for quick service or storage
• Included rubber washer allows tightening of the hull nut to irregular hull surfaces
• P208 housing installation requires special cutter
• Blanking plug is supplied with each unit
• Available in a plastic housing only

Specifications

• Weight: 0.6 kg (1.3 lb)
• Acoustic Window: Layered plastic epoxy (LPE)
• Hull Deadrise: 0° to 12° optimum and 20° maximum
• Hole Diameter: 51 mm (2”)
• Sensor Cable Length: 10 m (33’) standard
