Features
- Depth & fast-response water-temperature sensor
- Low—CHIRPS from 38 kHz to 75 kHz 19° to 10° port-starboard beamwidth (10° to 5° fore-aft beamwidth)
- High—CHIRPS from 130 kHz to 210 kHz 8° to 4° beamwidth
- 117 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 38, 50, and 200 kHz plus everything else in the bandwidth
- Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking)

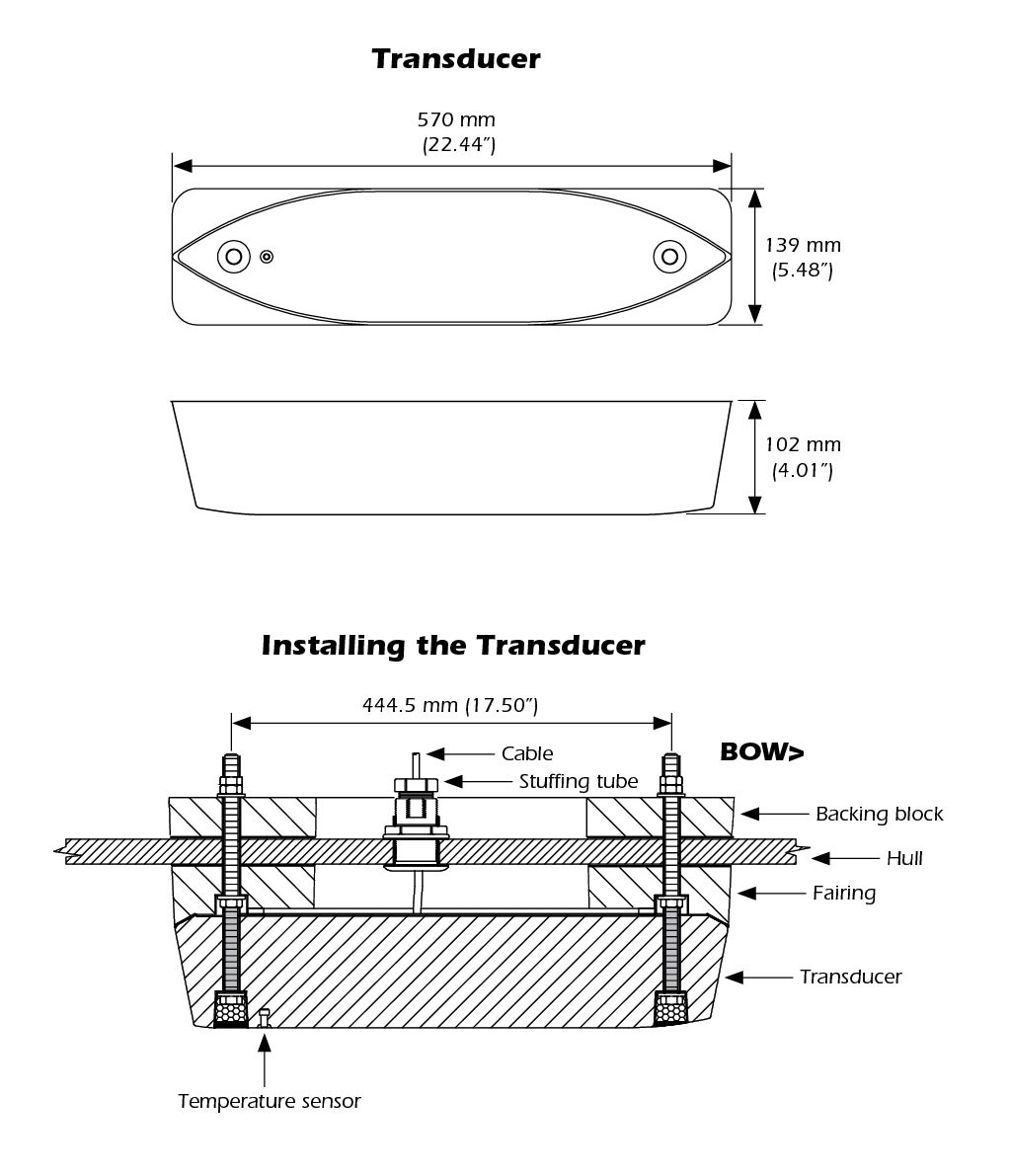

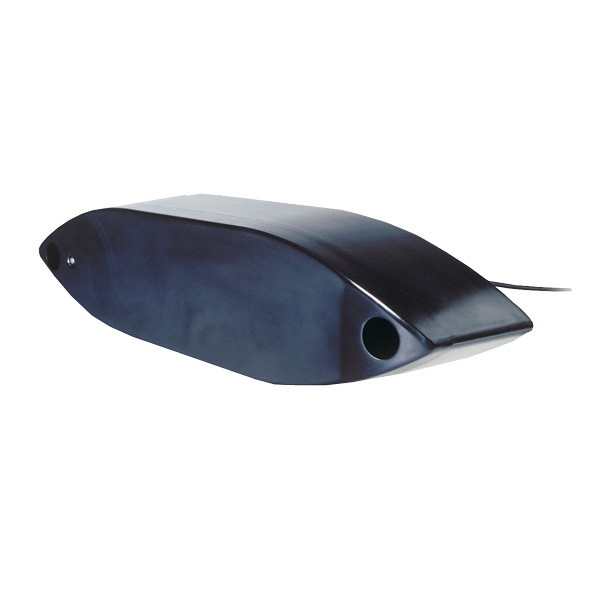

- Urethane transducer housing with High-Performance Fairing
- Boat Size: 12 m (40’) and above
- Hull Type: Fiberglass, wood, or metal
Specifications
- Hull Deadrise: 0° to 25°
- Acoustic Window: Epoxy/urethane
- Weight: 15.1 kg (33.3 lb)
