Detailed Description

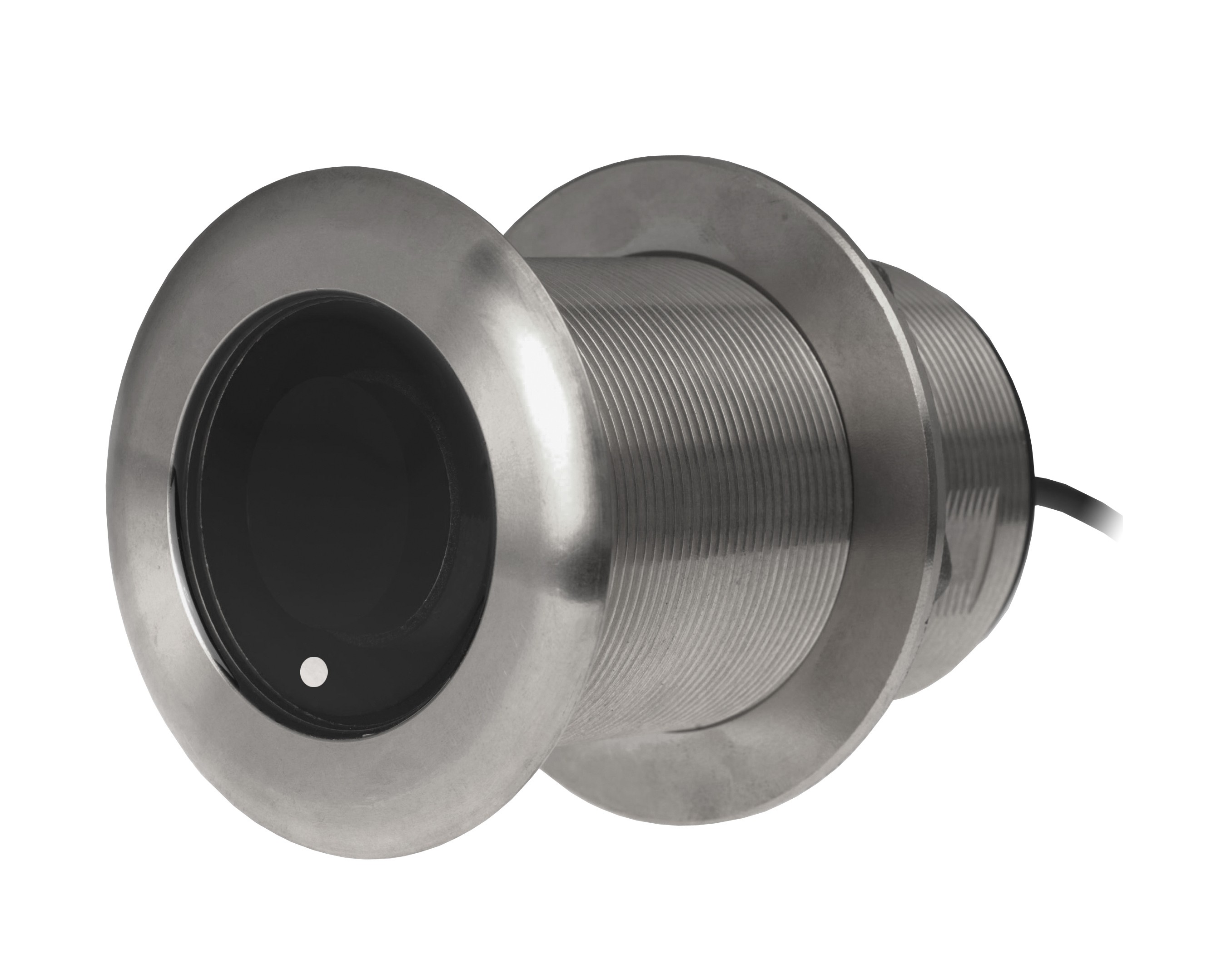

Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! CHIRP transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.
This transducer is designed for smaller boats up to 25 feet (8 m).
A tilted element model in the CHIRP Thru-Hull product line, the SS75H CHIRPS across the following bandwidth:
H Model – High Frequency 130-210 kHz

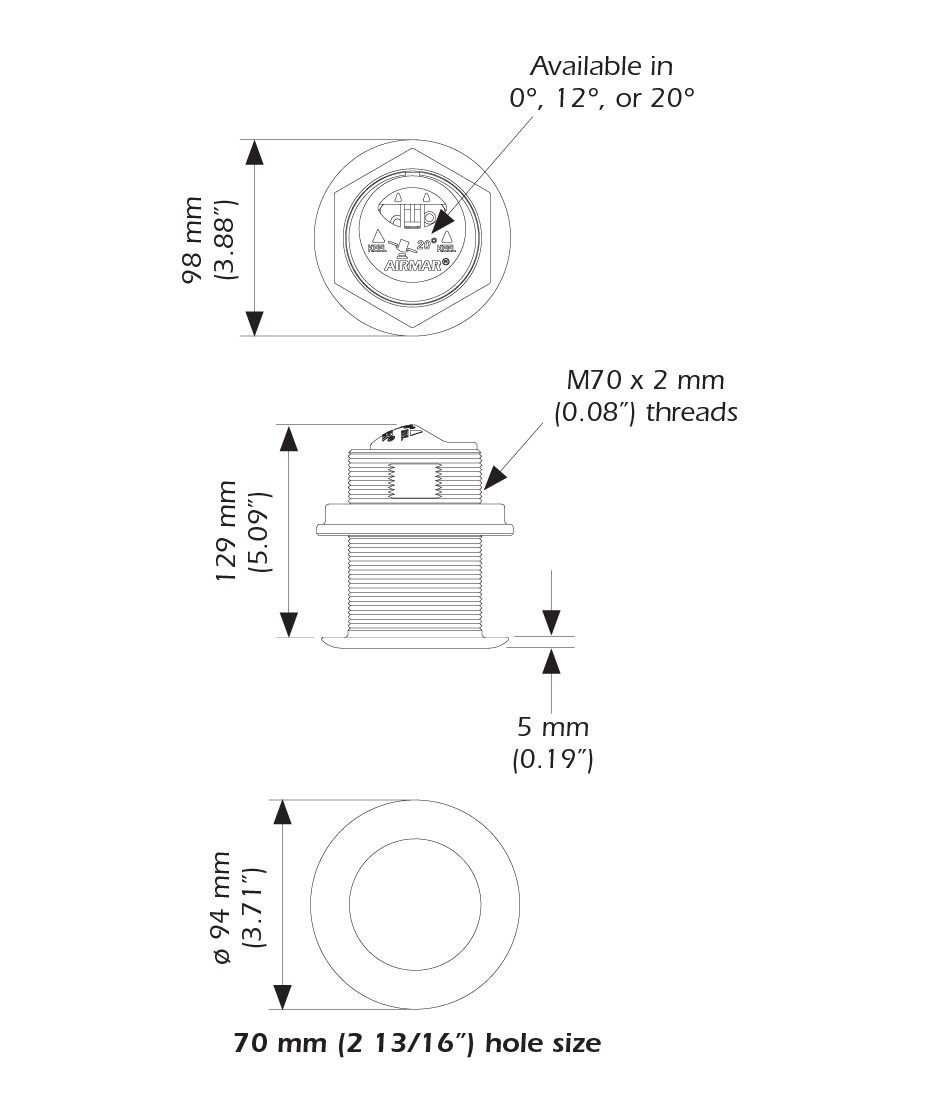

The H Model is available in 0°, 12°, or 20° tilted versions.
*Note the high frequency operating bands is 600 W.
Features
- Depth & Temperature
- CHIRP Technology H Frequency
- 600 W
- High-Performance
- Stainless Steel
- Exclusive Transducer ID®
Specifications
- Hull Deadrise: Up to 28°
- Acoustic Window: Urethane
- Weight: 1.4 kg (3 lb)
Technical Data
Transducer Designation:
M: 80-130A
