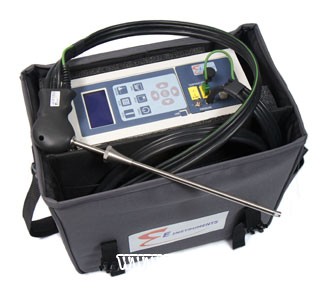

E1500Combustion Analyzer
O2 & CO Gas SensorsCO2 Calculated

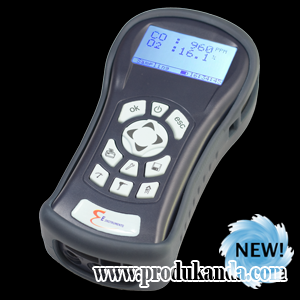

E4500Hand–Held Emissions AnalyzerO2, CO, NO, NO2, SO2, CxHy Sensors Automatic Data Saving
F900Forklift & Small Engine Exhaust AnalyzerCO (0-50,000 ppm), & O2 Sensors
E5500Emissions AnalyzerO2, CO, NO, NO2, SO2Sensors Real–time Software with Bluetooth

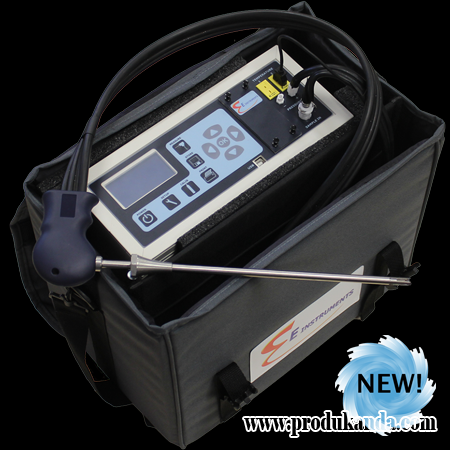

E8500 PlusEmissions Analyzer with Chiller
O2, CO, NO, NO2, SO2, & H2S EC Sensors CO2, CxHy, & High CO NDIR Sensors
Real–time Software with Bluetooth
E8500–MKMarine Kit for MARPOL Annex VI Compliance
O2, CO, NO, NO2, & SO2, EC Sensors CO2, CxHy, & High CO NDIR Sensors
Real–time Software with Bluetooth
« Portable Emissions Analyzers Overview
| E1500 | E4500 | F900 | E5500 | E8500 Plus | E8500-MK | |
|---|---|---|---|---|---|---|
| Maximum Number of Sensors | 2 | 4 | 2 | 5 | 9 | 9 |
| Internal Memory (Samples Stored) |
2000 | 2000 | 1000 | 1000 | 2000 | 1000 |
| Draft/Differential Pressure | Standard | Standard | Standard | Standard | Standard | |
| Gas Velocity | Optional | Optional | Optional | Optional | Optional | |
| Built-In Printer (Non-Thermal) |
Standard, Non-Fading Paper | Standard, Non-Fading Paper | Optional Remote Wireless Printer | Optional Remote Wireless Printer | Optional Remote Wireless Printer | Optional Remote Wireless Printer |
| O2 Sensor (0-25%) |
Standard | Standard | Standard | Standard | Standard | Standard |
| CO Sensor (0-8000ppm) |
Standard | Standard | Standard, up to 50,000 ppm | Standard | Standard | Standard |
| CO Dilution Auto-Range (automatic) | Standard, up to 50,000 ppm | Standard, up to 20,000 ppm | Standard, up to 20,000 ppm | Standard, up to 20,000 ppm | ||
| CO2 Calculated (0-99.9%) |
Standard | Standard | Standard | Standard | Standard | |
| NO Sensor (0-5000ppm) |
Standard | Standard | Standard | Standard | ||
| NO2 Sensor (0-1000ppm) |
Optional | Optional | Optional | Standard | ||
| SO2 Sensor (0-5000ppm) |
Optional | Optional | Optional | Standard | ||
| Low NOx/SO2 Sensors (0-100.0ppm) | Optional | Optional | Optional | Optional | ||
| CxHy(HC) Sensor Pellistor type (0-5%) |
Optional | |||||
| H2S Sensor (0-500ppm) |
Optional | Optional | ||||
| VOC Sensor (0-200ppm) |
Optional | Optional | ||||
| CO2 NDIR Sensor (0-20%) |
Optional | Standard | ||||
| CxHy(HC) NDIR Sensor (0-3%) | Optional | Standard | ||||
| CO NDIR Sensor (0-15%) |
Optional | Standard | ||||
| Built-In Peltier Chiller | Standard | Standard | ||||
| Automatic Data Logging | Standard | Standard | Standard | Standard | Standard | Standard |
| Bluetooth Wireless Communications | Standard | Standard | Standard | Standard | Standard | Standard |
| Software Package | Standard | Standard | Standard, Real-Time | Standard, Real-Time | Standard, Real-Time | Standard, Real-Time |
| E1500 | E4500 | F900 | E5500 | E8500 Plus | E8500-MK |
Standard Probes

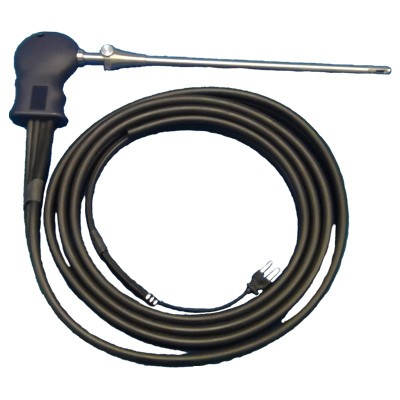

12" (300mm) Standard Probe (gas & draft), 1470F(800C) max, with 10' (3m) dual hose
30" (750mm) Probe (gas & draft), 1470F(800C) max, with 10' (3m) dual hose
Applications
- Boilers
- Burners
- Heaters
- Engines

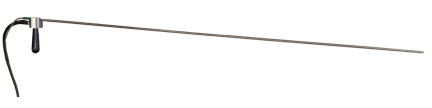

Longer & High Temperature Probes
40" (1m) Probe, 2190F (1200C) max, with 10' (3m) Hose
60" (1.5m) Probe, 2190F (1200C) max, with 10' (3m) Hose
* Customized Probes available up to 100” (2.5m) in length available upon request
Applications
- Power Plants
- Cement
- Steel
- Glass

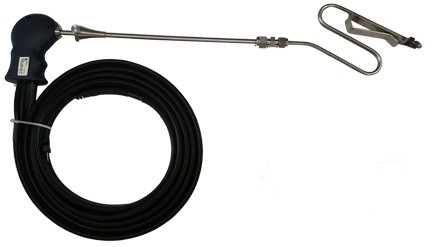

Forklift Probe
12"(300mm) Forklift & Small Engine Probe (gas & draft), 1470F (800C) max, with 10'(3m) dual hose
Applications
- Forklifts
- Vehicles
- Other Small Engines
Sintered Filter
Sintered Filter with Half-Shield for End of Probe (compatible with 40" & 60" Probes only) for High Dust, Particle, & Ash Applications
Applications
- Coal Fired Boilers
- Cement Kilns
- Steel Furnaces
- Incinerators

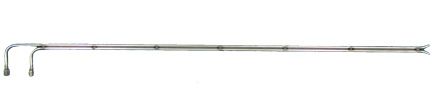

Pitot Tube
36" (900mm) Pitot Tube
for Measurements & Calculations of:
- Stack/Flue Gas Velocity
- Volumetric Flow Rate
- Mass Emissions
