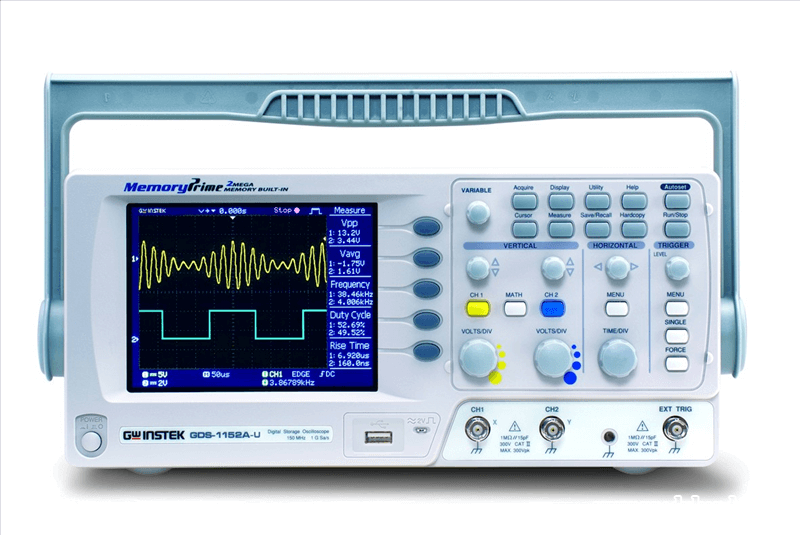

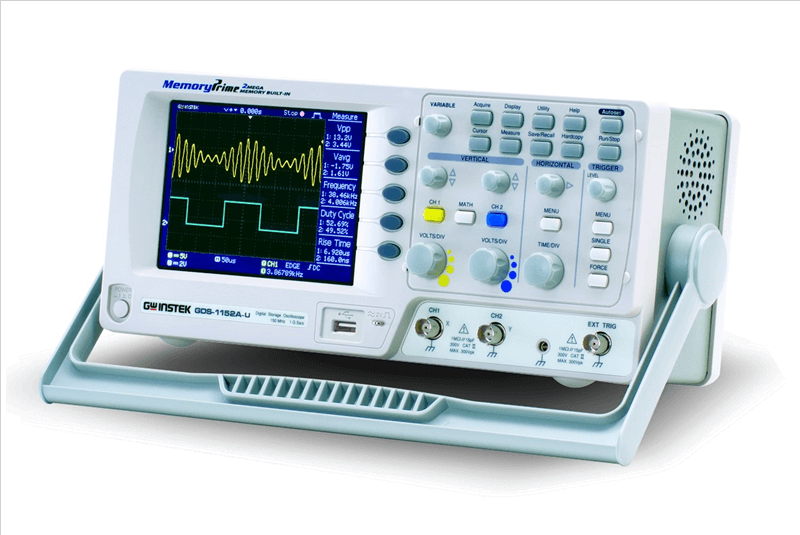

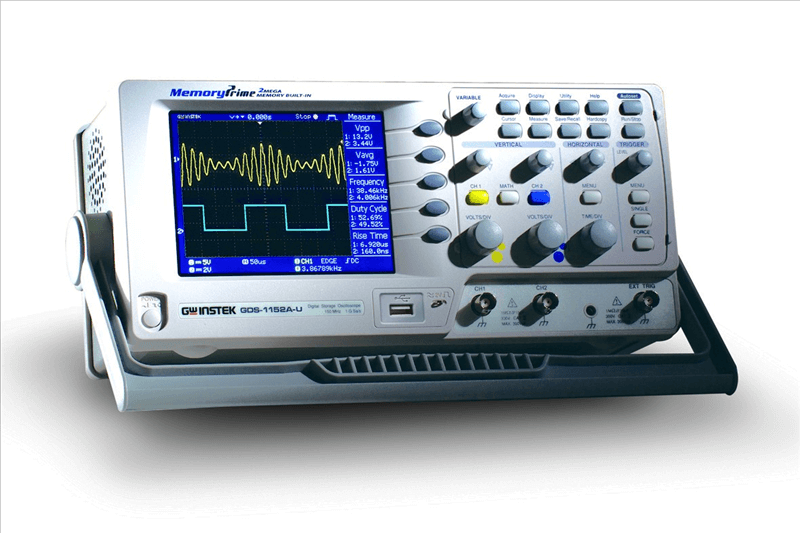

150/100/70MHz Bandwidths
-
1GSa/s Real-Time Sample Rates Maximum, 25GSa/s Equivalent-Time
-
2Mega Points Record Length
-
2mV~10V Vertical Scale
-
1ns~50s Horizontal Range
-
Up to 27 Automatic Measurements
-
5.7" TFT LCD Display
-
USB Host and Device Interface Supported
-
Go/NoGo Function
-
Data Logger
-
Limited Lifetime Warranty
| GDS-1152A-U | GDS-1102A-U | GDS-1072A-U | |
| Waveform Technology | Memory-Prime | ||
| Display |
5.7" TFT LCD Color |
||
| Bandwidth (MHz) |
150 |
100 | 70 |
| Number of Channel |
2 |
2 | 2 |
| Memory Depth |
2M Points |
||
| Sample Rate |
1GSa/s (RTS) |
||
| Vertical Resolution | 8-bit | ||
| Vertical Sensitivity | 2mV/div ~ 10V/div | ||
| Time Base Range | 1ns/div ~ 50s/div | ||
| Input Impedance Selection | 1MΩ | ||
| Auto Measurement | 27 | ||
| Waveform Memory | 15 | ||
| Panel Setup Memory | 15 | ||
| Auto-Set | V | ||
| Auto/Normal Trigger | V | ||
| ALT Trigger | - | ||
| TV Trigger | V | ||
| Cursor Readout | V | ||
| XY Mode | V | ||
| Zoom | V | ||
| Go/NoGo | V | ||
| Zoom FFT | V | ||
| Counter Function | V | ||
| Function Generator | - | ||
| Logic Analyzer | - | ||
| Data Logger | V | ||
| Digital Storage | V | ||
| Go/NoGo Output | - | ||
| Interface | USB Host/Device | ||
| SVGA Output | - | ||
| Buzzer Alarm | - | ||
| PictBridge Compatible | V | ||
| Battery Power Operation | - | ||
| LED Indicators | - | ||
| Z-Axis Input | - | ||
| LabView Driver | V | ||
| Power Source | AC 100V ~ 240V |
||
