300MHz/200MHz/100MHz/70MHz Bandwidth ,2 or 4 Input Channel
-
2GSa/s Real-time Sampling Rate and 100GSa/s Equivalent Time Sampling Rate
-
2Mega Points Record Length
-
1mV /div to 10V/div of Vertical Range
-
1ns/div to 100s/div of Time Base Range
-
80,000 wfm/s of Waveform update Rate
-
8 inch 800*600 High Resolution TFT LCD Display
-
Built-in Segmented Memory and Waveform Search Functions to Optimize the Efficiency of Record Length
-
Zoom Window and Play/Pause can Rapidly Navigate the Waveforms
-
36 Automatic Measurement Functions Offers Various Measurement Selections
-
Optional 8 or 16 digital channel with Logic analyzer(MSO)
-
Optional Function Generator
-
Flexible Remote Control Connectivity(Standard:USB ;Option:LAN/GPIB)
-
Upgradable CAN/LIN bus analysis ,Advanced Logic ,Datalog ,DVM and H-expansion functionalities
-
Description
-
Specification
-
Accessories
-
Ordering Information
-
Download
-
FAQs
-
Video
-

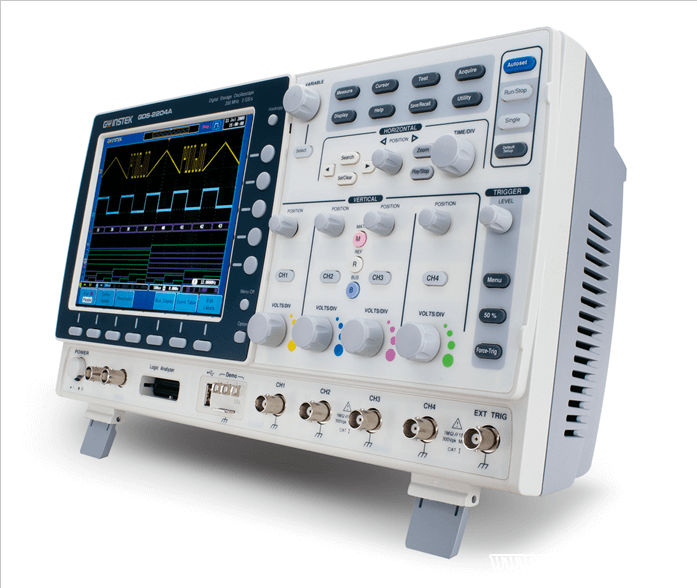

GDS-2304A GDS-2302A GDS-2204A GDS-2202A GDS-2104A GDS-2102A GDS-2074A GDS-2072A Waveform Technology VPO ( Visual Persistence Oscilloscope ) Display 8" TFT LCD SVGA
Bandwidth (MHz) 300
300 200 200 100 100 70 70 Number of Channel 4
2 4 2 4 2 4 2 Memory Depth Max. 2M pts
Sample Rate 2GSa/s (RTS)
100GSa/s (ETS)Vertical Resolution 8-bit Vertical Sensitivity 1mV/div ~ 10V/div Time Base Range 1ns/div ~ 100s/div Input Impedance Selection 1MΩ Auto Measurement 36 Waveform Memory 24 Panel Setup Memory 20 Auto-Set V Auto/Normal Trigger V ALT Trigger V TV Trigger V Cursor Readout V XY Mode V Zoom V Go/NoGo V Zoom FFT V Counter Function V Function Generator Opt. Logic Analyzer Opt. Data Logger V, *It Support From App Software. Digital Storage V Go/NoGo Output V Interface USB Host/Device, RS-232, GPIB(Opt.), Lan(Opt.) SVGA Output Opt. Buzzer Alarm V PictBridge Compatible V Battery Power Operation - LED Indicators - Z-Axis Input - LabView Driver V Power Source AC 100V ~ 240V
