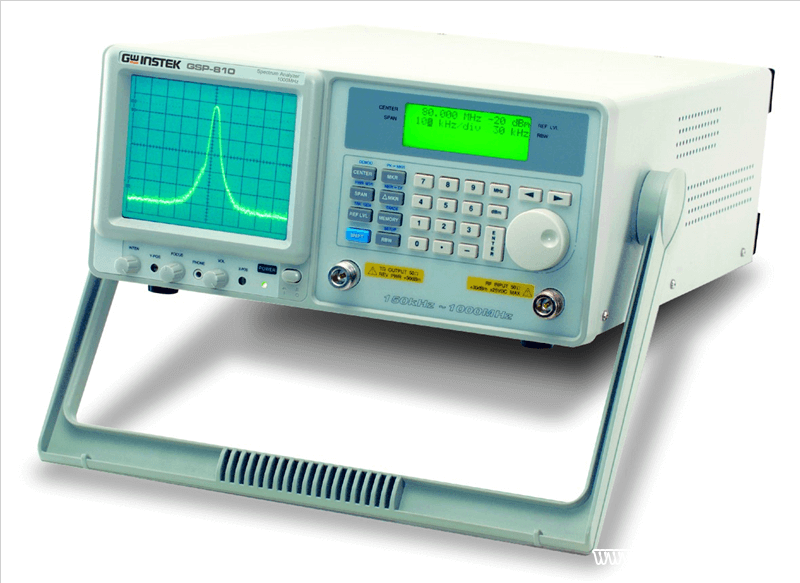

Frequency Range: 150kHz ~1GHz
-
Fully Digital Phase Locked Loop Technique Design
-
High Frequency Stability:±10ppm
-
RBW : 3K, 30k, 220k, 4MHz
-
High Input Protection Level : +30dBm,±25VDC
-
Reference Level Range : -30dBm~ +20dBm
-
Two Markers for Absolute and Relative Measurement
-
Support standard RS-232C Interface to connect with PC
-
Options: Tracking Generator, Power Meter, Remote Control Software
|
FREQUENCY
|
|
|
Frequency Range
|
150kHz~1GHz
|
|
Aging Rate
|
± 10ppm, 0~50°C, 2ppm/yr
|
|
Span Range
|
Zero, 2kHz~100MHz/div in 1-2-5 sequence
|
|
Phase Noise
|
-77dBc/Hz @ 1GHz 30kHz offset
|
|
Frequency Resolution
|
1kHz C.F. entry, 40Hz sweep resolution at 2kHz/div
|
|
Frequency Display
|
6 1/2 digit setting
|
|
Frequency Control
|
Digital phase locked
|
|
RESOLUTION BANDWIDTH
|
|
|
RBW Range
|
3kHz, 30kHz, 220kHz, 4MHz
|
|
RBW Accuracy
|
15%
|
|
Video Bandwidth Range
|
1.6kHz/90kHz couple with RBW
|
|
AMPLITUDE
|
|
|
Measurement Range
|
-100dBm~+20dBm
|
|
Overload Protection
|
+30dBm continuous, ± 25VDC
|
|
Reference Level Range
|
-30dBm~+20dBm
|
|
Amplitude Display Range
|
75dB
|
|
Amplitude Accuracy
|
±1.5dB typical @ 0dBm, 80MHz
|
|
Frequency Flatness
|
±1.5dB over 100MHz,±2.5dB typical over entire band/±3dB:150kHz~10MHz
|
|
Amplitude Level Linearity
|
± 1.5dB over 70dB
|
|
DYNAMIC RANGE
|
|
|
Average Noise Floor
|
-95dBm @30kHz RBW, -100dBm typical /
-75dBm: 150kHz~10MHz |
|
Third Inter-Modulation
|
<-70dBc, @-40dBm input, 2tones, 2MHz apart/
<-45dBc:150kHz~10MHz |
|
Harmonic Distortion
|
<-40dBc, RF input < selected reference
|
|
Non-Harmonic Spurious
|
<-60dBc typical down from reference level, average, 5MHz/div
|
|

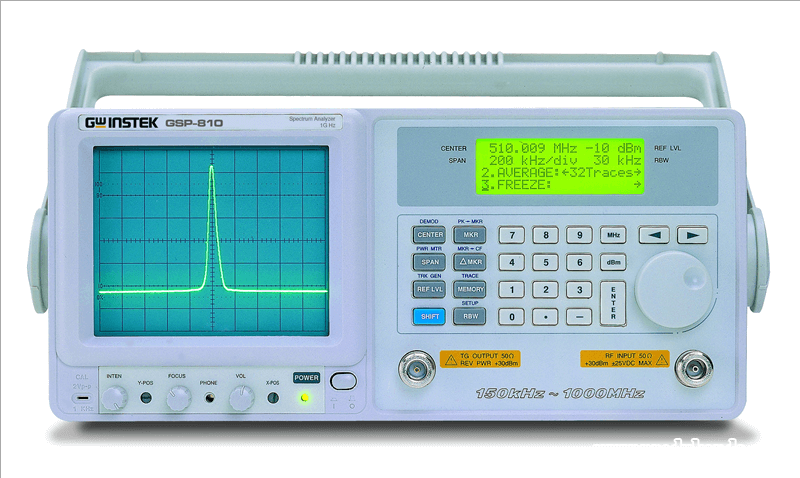

DISPLAY SYSTEM
|
|
|
Display Device
|
CRT Display, 8 x 10 graticule, 6-inch waveform screen
LCD Display, 4 line x 20 character data screen |
|
Display Function
|
Center Frequency Control, Bandwidth,
Reference Level, Span Range, Amplitude |
|
FUNCTIONS
|
|
|
Marker Mode
|
Absolute, relative, PK->marker, marker->center
|
|
Number of Markers
|
2
|
|
Marker Resolution
|
0.1dB, 1kHz
|
|
Marker Accuracy
|
0.1dB±amplitude accuracy
|
|
Memory
|
10 save/recall memory
|
|
Trace
|
Max. hold, average(2~32 traces), freeze(Hold)
|
|
Setup
|
Access parameters
|
|
Demodulator
|
WB FM, 120kHz deviation
MB FM, 75kHz deviation NB FM, 30kHz deviation AM Outputs : Internal speaker, 3.5mm stereo jack, wired for mono operation |
|
Calibrate Signal
|
80MHz, -30dBm
|
|
Interface
|
RS-232C standard & remote display software
(The software will be downloaded from GW Web-Site.) |
|
POWER SOURCE AC
|
|
|
|
100V/120V/220V/230V ±10%, 50/60Hz
|
|
ACCESSORIES
|
|
|
|
User manual x 1, Power cord x 1
|
|
DIMENSIONS & WEIGHT
|
|
|
|
310(W) x 150(H) x 455(D) mm
Approx. 8.5kg |
