EPAM-5000 Environmental Particulate Air Monitor

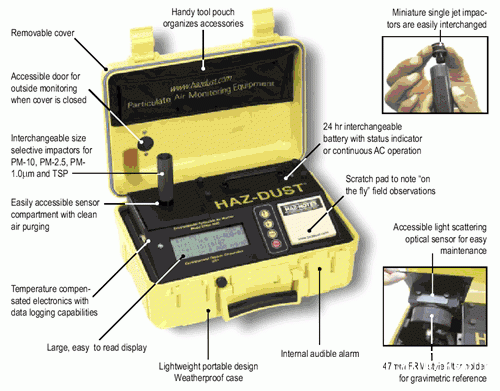

An affordable, easily deployable, and portable air monitor designed for measuring trace level for ambient air pollution. The unique sampling design allows for real-time data and filter gravimetric analysis utilizing the FRM 47mm Cassette located directly behind the optical sensor. EPAM-5000 offers a weather tight carrying case, temperature compensated electronics, easy to clean optical sensor and a standard 24 hour battery or continuous sampling with solar power panel accessory. Network up to 8 Haz-Dust™ Model EPAM-5000 systems and add up to 5 miles wireless data transmission to central PC or MAC computer. Weatherproof Enclosure Inline 47mm FRM Cassette Sensing range: .001-20.0 and/or .01-200.0 mg/m³ PM size range: .1-100 µm Sampling flow rate: 4.0 LPM Alarm output: 90 db at 3 ft Analog Output: 0-2 Vdc Digital output: RS-232--Record Time: 1 s. to 15 mon. Display: Real-Time mg/m3 Operating temp: -10°C -50°C Battery: Rechargeable 24hr Weight: 12 lbs Dimensions: 14 x 6 x 10 in.
Applications
Features
Specifications
