HYDROBIOS Combined Plate Chamber

Harga :
CALL
Merk :
HYDROBIOS
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Dilihat :
315 Kali
Update Terakhir :
09-02-2016 16:10

Dapatkan Spesifikasi Harga HYDROBIOS Combined Plate Chamber Produk Terbaik dari ANDALAN PRIMA SEJAHTERA LABORATORY EQUIPMENT, CHEMICAL, GLASWARE, MEASURING AND TEST

Detail Produk

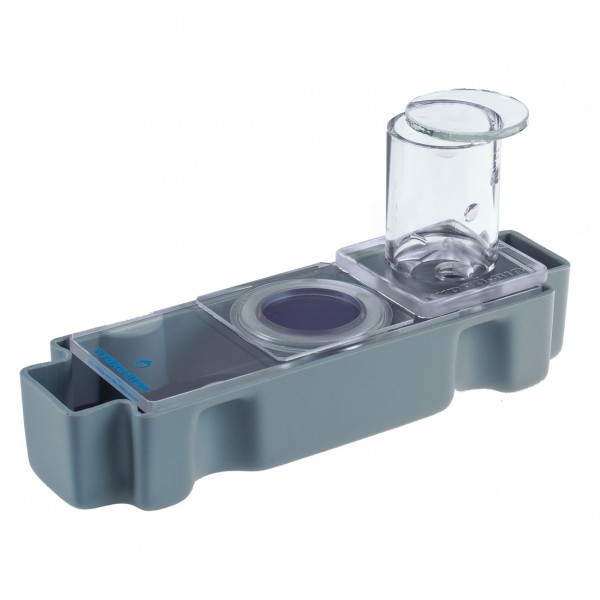

Combined Plate Chamber


Plankton sedimentation and counting chamber acc. to Utermoehl



ABOUT

as discribed in UNESCO’s Phytoplankton Manual (published 1978) the Combined Plate Chamber allows you to look at sedimented plankton samples from a very short distance l. How? Put the sample into a cylinder on top of the rectangular plexiglass plate with a thin base plate, let the fixed plankton concentrate and after sedimentation simply push the cylinder with excess liquid aside. The handling support underneath the plate will collect the extra water from the cylinder. You can now take the plate and examine the sample under an inverted microscope. Three calibrated cylinder sizes are provided with each set allowing to analyse different sample volumes.



Hydro-Bios No. 435 025 | Plankton Examination
Spare Parts





Cover Plates for Tubular



Cover Plates for Tubular
Plankton Chambers and
Combined Plate Chamber,
33 mm Ø, 2 mm thick,
in package of 50 pcs.

Hydro-Bios No. 435 028

Base Plates for Tubular



Base Plates for Tubular
Plankton Chambers and
Combined Plate Chamber,
27.5 mm Ø, 0.2 mm thick,
in package of 250 pcs.

Hydro-Bios No. 435 035





TECHNICAL DATA
Material Plexiglass, glass,
chrome-plated brass
Dimensions of plexiglass plate 43 x 120 mm
Diameter of plexiglass plate alignment 39 mm and 42 mm
Inner diameter of sedimentation tube 26 mm
Height of sedimentation cylinders approx. 15 mm for the 10 ml version,
approx. 92 mm for the 50 ml version,
approx. 185 mm for the 100 ml version
