OPTIONS:
-
Data memory up to 4 MByte
-
Mains supply circuit
-
Submerging depth of the measuring head up to 100 meters using
-
a cable (without Telescopic Rod).
| TECHNICAL DATA | |
|---|---|
| Measuring range | 0.100 ... 9.999 m/s |
| Resolution | 0.001 m/s |
| Accuracy | ± 1 % (0.50 ... 9.99 m/s) ± 5 % (0.10 ... 0.499 m/s) |
| Measuring cycle | 5 to 30 s (user adjustable) |
| Memory | 4000 measuring values |
| Ambient temperature | 0°C ... 50°C |
| Submerging depth of measuring head | 10 m |
| Hand Terminal | splash-proof IP 65 |
| EC-Conformity (CE) | EN 50081-1, EN 50082-1 |
| Power supply | Battery 9 V (PP3) or external: 7...12 V, max.12 mA |
| ORDERING INFORMATION | |
|---|---|
| Products | |

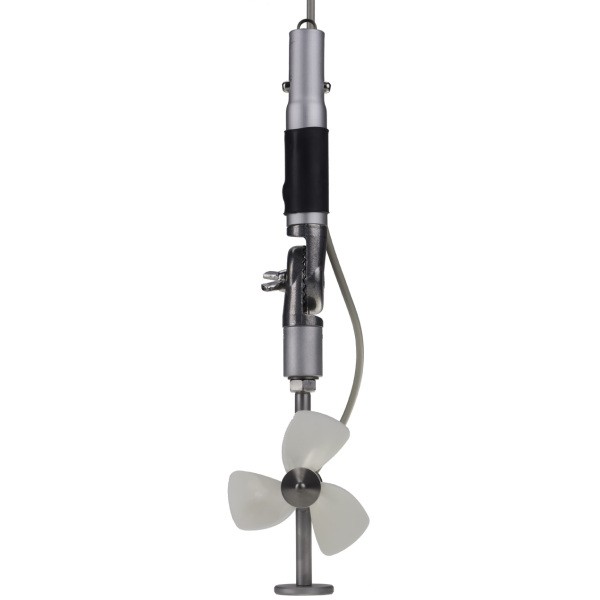

| 445 500 | Rod Held Current Meter RHCM with telescopic rod 3 x 90 cm (270 cm) |
| 445 515 | Rod Held Current Meter RHCM with telescopic rod 3 x 150 cm (450 cm) |
