HYDROBIOS Sediment Trap acc. to Saarso

Harga :
CALL
Merk :
HYDROBIOS
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Dilihat :
286 Kali
Update Terakhir :
09-02-2016 16:21

Dapatkan Spesifikasi Harga HYDROBIOS Sediment Trap acc. to Saarso Produk Terbaik dari ANDALAN PRIMA SEJAHTERA LABORATORY EQUIPMENT, CHEMICAL, GLASWARE, MEASURING AND TEST

Detail Produk

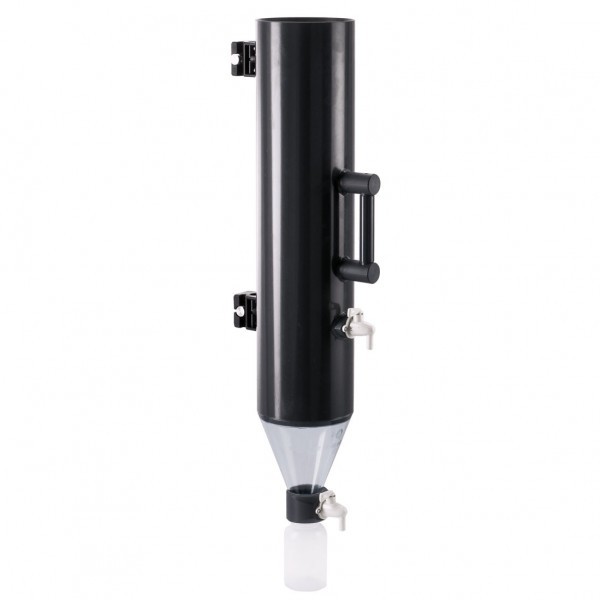

Sediment Trap acc. to Saarso


Cylindrical Sedimentation Vessel



ABOUT

Sediment Traps are containers that allow to quantify sinking particulate matters in aquatic environments. Our tubular design provides a relatively small sampling area but allows suspended matters to settle without the risk of being flushed out even under turbulent environmental conditions (as it happens with large-area conical traps). The Sediment Trap has been designed for autonomous operation in aquatic environments with relatively high vertical particulate flux value. The instrument does not need heavy moorings. Two wide clamps simplify its use in vertical series attached to the same mooring line. Each trap is equipped with a dismountable baffle grid at the opening to reduce turbulences, avoiding wash out of the sediment from the upper part of the cylinder. The water above the collecting bottle can be drained via two cocks. The transparent funnel bottom enables to check for re-suspension of sediment from the collecting bottle after recovery.

Hydro-Bios No. 444 000 | Sediment Traps
Spare Parts





Spare Collecting Bottles



250 ml with screw cap (1 set of 24 pcs.)

Hydro-Bios No. 444 150


TECHNICAL DATA
Opening area 0.015 m²
Cylinder diameter 140 mm
Cylinder length 560 mm
Total length 900 mm
Diameter to length ratio 01:04
Cone angle 40
Grid dimensions 20 x 20 x 40 mm
Mooring line diameter 6 mm
Material PVC, PE
Weight in air/ water 3 kg /1 kg
