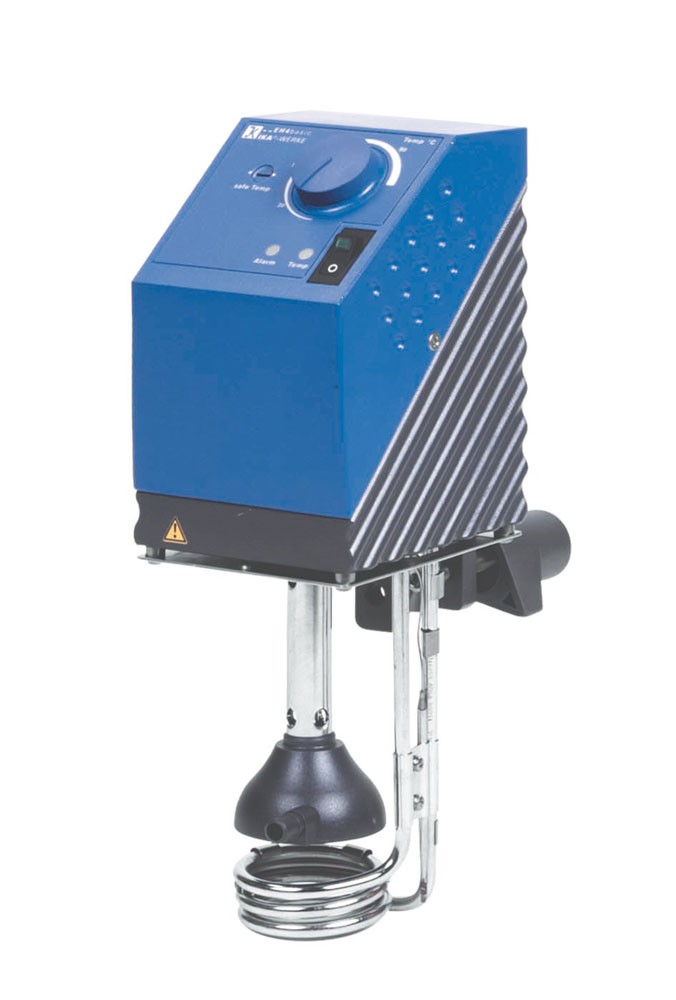

IKA EH 4 basic Immersion thermostat
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
02-05-2016 09:07
Dapatkan Spesifikasi Harga
IKA EH 4 basic Immersion thermostat Produk Terbaik dari
ANDALAN PRIMA SEJAHTERA LABORATORY EQUIPMENT, CHEMICAL, GLASWARE, MEASURING AND TEST
Detail Produk
Immersion circulator for temperature control of up to 100 °C in open baths (depth at least 150 mm)
- Complies with all safety requirements for electrically operated devices
- Intended for supervised use
- Operate with non-flammable liquids only
- With universal clamp, suitable for all standard bath vessels
| Appliance type |
Compact Immersion Circulators |
| Class designation acc. DIN 12876 |
I |
| Identification according to DIN 12876 |
NFL |
| Heat output |
1500 W |
| Working temperature min. |
25 °C |
| Working temperature max. |
100 °C |
| Temperature control |
capillary tube regulator |
| Working temperature sensor |
capillary tube regulator |
| Safety temperature sensor |
capillary tube regulator |
| Working temperature display |
scale |
| Safety temperature display |
no |
| Temperature stability DIN 12876 |
0.12 ±K |
| Display for operation with ext. sensor |
no |
| Warning function optical |
yes |
| Warning function acoustic |
no |
| Warning function excess temperature |
yes |
| Warning function insufficient temperature |
no |
| Adjustable safety circuit min. |
25 °C |
| Adjustable safety circuit max. |
200 °C |
| Sub-level protection |
no |
| Filling volume max. |
18 l |
| Pump type |
pressure pump |
| Pump capacity adjustable |
no |
| Pump pressure max. (0 liters discharge flow) |
0.08 bar |
| Flow rate max. (0 bar back pressure) |
5 l/min |
| Bath depth min. |
160 mm |
| Usable depth min. |
75 mm |
| Appliance fastener |
extension arm + clamp |
| Range of universal clamp min. |
2 mm |
| Range of universal clamp max. |
28 mm |
| Technical data complies with the standard |
DIN 12876 |
| Extension arm diameter |
13 mm |
| Extension arm length |
250 mm |
| Permissible ON time |
100 % |
| Dimensions (W x H x D) |
105 x 319 x 139 mm |
| Weight |
2.3 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative humidity |
80 % |
| Protection class according to DIN EN 60529 |
IP 31 |
| RS 232 interface |
no |
| Analog output |
no |
| Voltage |
230 / 115 V |
| Frequency |
50/60 Hz |
| Power input |
1500 W |
