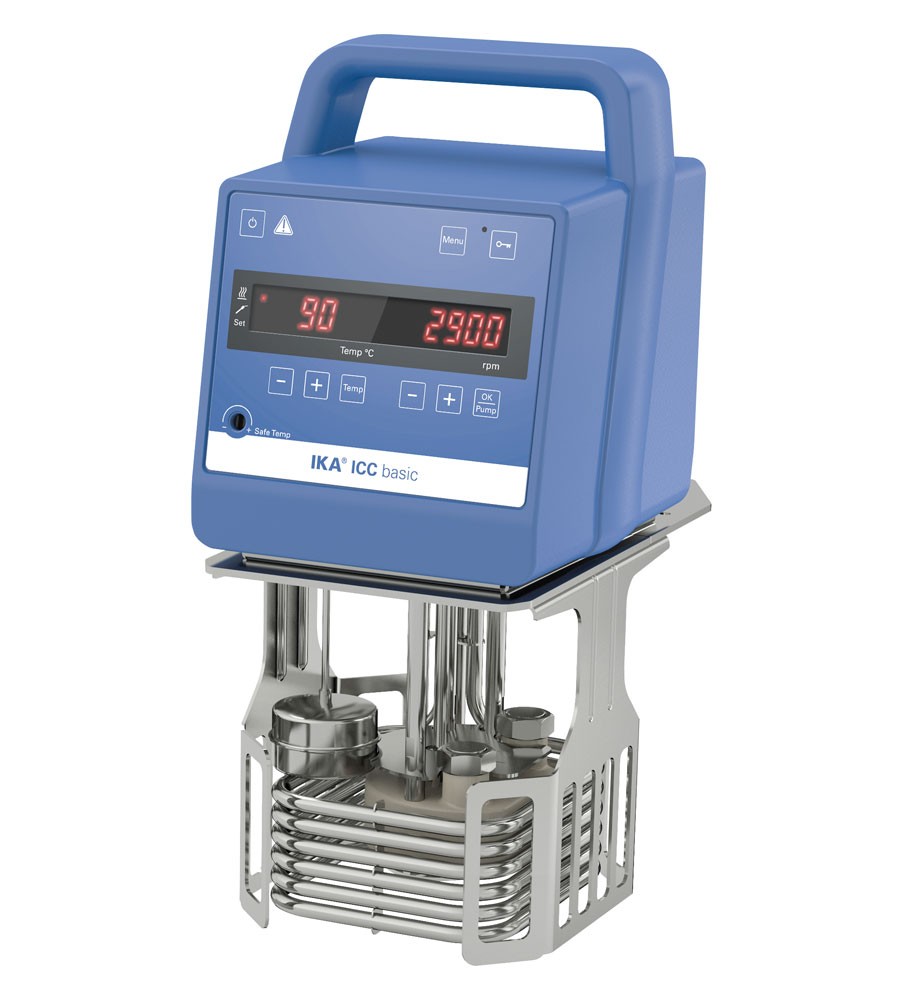

The integrated pressure/ suction pump allows ICC basic to be used for internal and external applications. Just connect the optional pump set. ICC basic also has an optional cooling coil that allows to work close to ambient temperatures.
The ICC basic Thermostat is first in its class with an integrated carrying handle that allows for comfortable transport and safe storage thanks to its clever stand.
| Appliance type | Compact Immersion Circulators |
| Class designation acc. DIN 12876 | III |
| Identification according to DIN 12876 | FL |
| Heat output | 2000 W |
| Operating temperature min. | -20 °C |
| Operating temperature max. (with external heating) | 150 °C |
| Working temperature min. | room temp. +10K @1000rpm °C |
| Working temperature max. | 150 °C |
| Temperature display | yes |
| Temperature control | PT 100 |
| Working temperature sensor | PT 100 |
| Safety temperature sensor | PT1000 |
| Working temperature display | LED |
| Safety temperature display | LED |
| Temperature stability DIN 12876 | 0.02 ±K |
| Display resolution | 0.1 K |
| Display for operation with ext. sensor | yes |
| Set temperature resolution | 0.1 ±K |
| Warning function optical | yes |
| Warning function acoustic | yes |
| Warning function excess temperature | yes |
| Warning function insufficient temperature | no |
| Adjustable safety circuit min. | 0 °C |
| Adjustable safety circuit max. | 160 °C |
| Sub-level protection | yes |
| Over-level protection | yes |
| Pump type | Pressure- / suction pump |
| Pump capacity adjustable | yes |
| Pump pressure max. (0 liters discharge flow) | 0.3 bar |
| Pressure pump (suction side) (0 liter flow) | 0.2 bar |
| Flow rate max. (0 bar back pressure) | 18 l/min |
| Bath depth min. | 150 mm |
| Calibration option | yes |
| Appliance fastener | clamp |
| Technical data complies with the standard | DIN 12876 |
| Permissible ON time | 100 % |
| Dimensions (W x H x D) | 145 x 340 x 200 mm |
| Weight | 3.75 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| USB interface | yes |
| RS 232 interface | yes |
| Voltage | 230 / 115 V |
| Frequency | 50/60 Hz |
| Power input | 2100 W |
