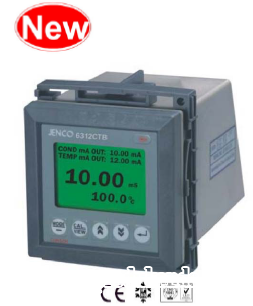

JENCO 6312CTB TDS, Temperature In-line Analyzer

Harga :

CALL

Merk :

JENCO

Pengiriman :

1 hari sejak pembayaran

Lokasi :

Jawa Barat - Bekasi

Dilihat :

151 Kali

Update Terakhir :

09-02-2016 11:57

Dapatkan Spesifikasi Harga JENCO 6312CTB TDS, Temperature In-line Analyzer Produk Terbaik dari ANDALAN PRIMA SEJAHTERA LABORATORY EQUIPMENT, CHEMICAL, GLASWARE, MEASURING AND TEST

Detail Produk

6312CTB

Graphic LCD with manual backlight displays conductivity/TDS,
temperature, relay status and transmitter current mA output simultaneously.
Convenient one point calibration and calibration data is stored in memory and is ready for use on power up.
Two sets of Isolated and reversible 4-20 mA current output for conductivity and temperature allows it to be used as a proportional output.
2 programmable on/off relays conductivity.
RS-485 output for remote access allows multiple units to be connected and ganged together.
Password protection.

Specifications

	RANGE	RESOLUTION	ACCURACY
K=0.01cm^-1	0.000 to 9.999uS/cm 0.000 to 5.000ppm	0.001uS/cm 0.001ppm	±0.5%FS ±1digit
	10.00 to 99.99uS/cm 5.00 to 50.00ppm	0.01uS/cm 0.01ppm	±0.5%FS ±1digit
	100.0 to 300.9uS/cm 50.0 to 150.0ppm	0.1uS/cm 0.1ppm	±0.5%FS ±1digit
K=0.1cm^-1	10.00 to 99.99uS/cm 5.00 to 5.000ppm	0.01uS/cm 0.1ppm	±0.5%FS ±1digit
	100.0 to 999.9uS/cm 50.0 to 500.0ppm	0.1uS/cm 0.1ppm	±0.5%FS ±1digit
	1.000 to 3.000mS/cm 0.500 to 1.500ppt	0.001mS/cm 0.001ppt	±0.5%FS ±1digit
K=1.0cm^-1	100.0 to 999.9uS/cm 50.0 to 500.0ppm	0.1uS/cm 0.001ppt	±0.5%FS ±1digit
	1.000 to 9.999mS/cm 0.5000 to 5.000ppt	0.001mS/cm 0.001ppt	±0.5%FS ±1digit
	10.00 to 30.00mS/cm 5.00 to 15.00ppt	0.01mS/cm 0.01ppt	±0.5%FS ±1digit
K=10.0cm^-1	1.000 to 9.999mS/cm 0.000 to 5.000ppt	0.001mS/cm 0.001ppt	±0.5%FS ±1digit
	10.00 to 99.99mS/cm 0.5.00 to 50.00ppt	0.01mS/cm 0.01ppt	±0.5%FS ±1digit
	100.0 to 300.0mS/cm 50.0 to 150.0ppt	0.1mS/cm 0.1ppt	±0.5%FS ±1digit
Temperature	-10.0 to 120.0℃	0.1℃	±0.3℃

General

Temperature Compensation: Auto -10.0 to 120.0°C (Thermistor, 10K ohm at 25.0 °C)
Cell Constant : 0.01, 0.1 , 1.0 ,10cm(exp)-1, 2 wire or 4 wire
Reference Termperature: From 10.0 to 29.0°C,user selectable
Temperature Coefficient : From 10.0 to 29 °C, user selectable
Output : Two current outputs for conducitivity and temperature
Current Output Range: 4 to 20 mA(isolated),programmable span
Current Output Scale User programmable ,linear
Maximum Load: 500 ohm /500V DC
Control Type: 2 ON/OFF controls
Relay Output: 5A at 115V AC or 2.5A at 220V AC, resistive load only
Display 128 x 64 graphical LCD with backlight
Security 4-dight password
Power :115 V AC or 230V AC at 50/60 HZ
Ambient Temperature Range: From 0 to 50 °C
Weight/Case: 950 grams / IP 65 ,1/4 DIN case, 148mm depth
