KOEHLER K33094 Compact Recirculating Chillers
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
10-02-2016 13:37
Dapatkan Spesifikasi Harga
KOEHLER K33094 Compact Recirculating Chillers Produk Terbaik dari
ANDALAN PRIMA SEJAHTERA LABORATORY EQUIPMENT, CHEMICAL, GLASWARE, MEASURING AND TEST
Detail Produk
K33094 Compact Recirculating Chillers
• 400 watts of cooling at -10°C
• Highly economical cooling for rotary evaporators, lasers, chromatography equipment, and other sensitive laboratory devices
• Simple Installation, operation, and maintenance
• Built-in high temperature and low flow rate alarms
|

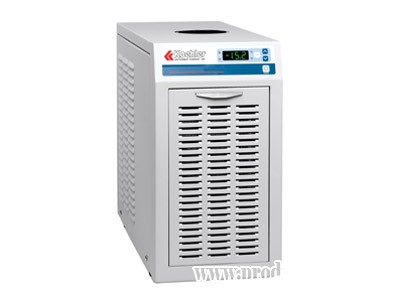

Click on the image to view a larger photo of the instrument. |
| |
Compact Recirculating Chillers maximize precious bench space while providing 400 watts of cooling at -10°C. An environmentally-friendly and economical alternative to costly tap-water cooling, this powerful compact chiller is also well suited for cooling chromatography equipment, lasers, and other laboratory equipment.
Specifications
Pump Type: Turbine or Magnetic Drive (Centrifugal)
Temperature Range: -20°C to +20°C (-4°F to +68°F)
Temperature Stability: ±0.1°C (±1.8°F)
Cooling Capacity at -10°C: 400 watts (1365 BTU/hr)
Alarms: User-settable high temperature;
Fixed low flow (below 0.5 GPM / 1.9 LPM)
Reservoir Capacity: 0.7 Gallon (2.65 Liter)
Dimensions: 18.5 x 9.6 x 23.4 in. (47 x 24.4 x 59.4 cm)
Shipping Weight: 76 lbs (34.5 kg)
|
 |
Ordering Information |
| |
|
Catalog
Number
|
Electrical
Requirements |
Pump Type
|
Max. Pump Flow
lpm (gpm) |
Max. Pump Pressure
psi (kPa) |
|
|
120V, 60Hz
|
Magnetic Drive
|
14.7 (3.9)
|
8 (55)
|
|
|
230V, 60Hz
|
Magnetic Drive
|
13 (3.4)
|
5.5 (38)
|
|
|
120V, 60Hz
|
Magnetic Drive
|
13.3 (3.5)
|
14.5 (100)
|
|
|
230V, 60Hz
|
Magnetic Drive
|
11.5 (3)
|
10 (69)
|
|
|
120V, 60Hz
|
Turbine
|
9.9 (2.6)
|
38 (262)
|
|
|
230V, 60Hz
|
Turbine
|
8 (2)
|
25 (169)
|
|
