KYORITSU Digital Multi meters 1030

Harga :
CALL
Merk :
KYORITSU
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Dilihat :
305 Kali
Update Terakhir :
11-02-2016 11:25

Dapatkan Spesifikasi Harga KYORITSU Digital Multi meters 1030 Produk Terbaik dari ANDALAN PRIMA SEJAHTERA LABORATORY EQUIPMENT, CHEMICAL, GLASWARE, MEASURING AND TEST

Detail Produk


Compact in Size, Light in Weight and Simple in Use.
• Double moulding provides comfortable and good feeling in hand.
• Penlight illuminates brightly the point to be measured, even in dark place.
• Backlight LCD is highly visible, even in darkness.
• Unique wrapping mechanism for test lead in the rear side compartment.
• Unique protection mechanism for the test prod for safety.
• All ranges including Ohm range are protected against overload voltage of 600V.
1030
CE

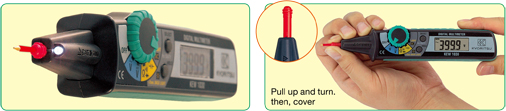

Long life LED light is of good use in dark place Protection cover prevents unforeseen accident
KEW 1030

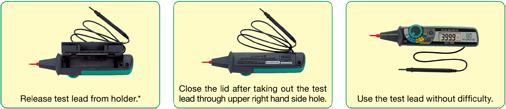

Wrapping mechanism for test lead in rear side compartment
KEW 1030
* Length of test lead is adjustable in 3 steps, ie, 60cm, 40cm and 20cm.

AC V 4/40/400/600V (4 Range auto)
|±1.3%rdg|±5dgt (4/40V) (50/60Hz)
|±1.6%rdg|±5dgt (400/600V) (50/60Hz)
DC V 400m/4/40/400/600V (5 Range auto)
|±0.8%rdg|±5dgt(400mV - 400V)
|±1.0%rdg|±5dgt(600V)
Ω 400/4k/40k/400k/4M/40MΩ (6 Range auto)
|±1.0%rdg|±5dgt (400Ω - 4MΩ)
|±2.5%rdg|±5dgt (40MΩ)
Diode check Test voltage approx. 0.3 - 1.5V
Continuity check Buzzer sounds when resistance is 120Ω or less.
Capacitance 50n/500n/5µ/50µ/100µF (5 Range auto)
|±3.5%rdg|±10dgt (50nF)
|±3.5%rdg|±5dgt (500n - 50µF)
|±4.5%rdg|±5dgt (100µF)
Frequency 5/50/500/5k/50k/200kHz
|±0.1%rdg|±5dgt (Measurable input: 1.5Vrms or more)
Duty 0.1 - 99.9%
|±2.5%rdg|±5dgt (Pulse width / Pulse cycle)
Data hold The measured value can be hold by pressing Data hold button
Battery voltage warning When the battery voltage drops to 2.4V|±0.2V or less
Auto power-off Built-in
Applicable standards IEC 61010-1: 2001 CAT III 600V
IEC 61010-031
IEC 61326-1
Power source Button type battery LR44 (SR44)1.5V × 2
Dimensions 190(L) × 39(W) × 31(D)mm
Weight Approx. 100g (including batteries)
Accessories Carrying case, LR44 (1.5V) × 2, Instruction manual
