KYORITSU High Voltage Insulation Tester 3025A/3125A
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
11-02-2016 13:42
Dapatkan Spesifikasi Harga
KYORITSU High Voltage Insulation Tester 3025A/3125A Produk Terbaik dari
ANDALAN PRIMA SEJAHTERA LABORATORY EQUIPMENT, CHEMICAL, GLASWARE, MEASURING AND TEST
Detail Produk
 |
 Selection Guide |
 |
 Product Catalogue |
|
 Instruction Manual |
|
|
| • |
Insulation Resistance up to 1TΩ (KEW 3125A) |
| • |
Short-Circuit Current up to 1.5mA |
| • |
Wide Test Voltage from 250V to 5000V (KEW 3125A) |
| • |
Diagnosis Function of PI and DAR |
| • |
Newly-designed alligator clip |
| • |
It comes with a tough hard case |
| • |
Filter function reduces noise interference for obtaining stable measurement |
| • |
Large display with Bar Graph indication and backlight |
| • |
Live voltage warning |
| • |
Safety standard IEC 61010-1 CAT IV 300V / CAT III 600V |
| |
|

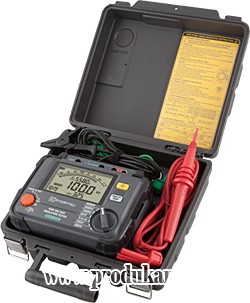

(Photo: 3125A) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Insulation resistance |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Rated voltage |
|
|
|
250V |
|
|
|
500V |
|
|
|
1000V |
|
|
|
2500V |
|
|
|
5000V (*) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Accuracy |
|
|
|
|
|
|
|
|
|
|
|
| 0.0 |
- |
99.9MΩ |
| 80 |
- |
999MΩ |
| 0.80 |
- |
2.00GΩ |
|
|
|
|
| 0.0 |
- |
99.9MΩ |
| 80 |
- |
999MΩ |
| 0.80 |
- |
9.99GΩ |
| 8.0 |
- |
100.0GΩ |
|
|
|
|
| 0.0 |
- |
99.9MΩ |
| 80 |
- |
999MΩ |
| 0.80 |
- |
9.99GΩ |
| 8.0 |
- |
99.9GΩ |
| 80 |
- |
1000GΩ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
±5%rdg±3dgt |
|
|
|
±5%rdg±3dgt |
|
|
|
±5%rdg±3dgt |
|
|
|
±5%rdg±3dgt |
|
|
|
±5%rdg±3dgt
±20%rdg(100GΩ or more)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Short circuit current |
|
|
|
1.5mA |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Output voltage |
|
|
|
Accuracy |
|
|
|
±10% |
|
|
|
-10 - +20% |
|
|
|
0 - +20% |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Monitor |
|
|
|
±10%rdg±20V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Voltage measurement |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Measuring range |
|
|
|
AC: 30 - 600V (50/60Hz), DC: ±30 - ±600V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Accuracy |
|
|
|
±2%rdg±3dgt |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
General |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power source |
|
|
|
DC12V : LR14/R14 × 8pcs |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Applicable standards |
|
|
|
IEC 61010-1, 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2,
IEC 61010-031, IEC 61326-1, 2-2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Dimension |
|
|
|
177 (L) × 226 (W) × 100 (D) mm
300 (L) × 315 (W) × 125 (D) mm (Hard case) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Weight |
|
|
|
3025A: 1.7kg approx., 3125A: 1.9kg approx. (including batteries)
4kg approx. (including accessories) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Accessories |
|
|
|
7165A (Line probe: 3m), 7264 (Earth cord: 3m), 7265 (Guard cord: 3m),
8019 (Hook type prod), 9180 (3025A Hard case), 9181 (3125A Hard case),
LR14 (Alkaline battery size C) × 8, Instruction manual |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Optional |
|
|
|
7168A (Line probe with alligator clip: 3m),
7253 (Longer line probe with alligator clip: 15m),
8302 (Adaptor for recorder) |
|
|
|
|
|
|
|
|
|
|
|
|
