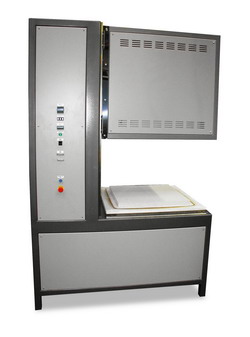

Special top hat furnace

• Electrically operated to raise and lower the furnace chamber, to ensure easy access to the workpiece
• Manual or automatic lifting or lowering operation
• Automatic lifting/lowering can be incorporated into temperature profile to increase cooling or venting
• Internal chamber dimensions: 500mm high x 600mm wide x 600mm deep
• Maximum temperature: 1200°C; maximum continuous operating temperature 1150°C in air
• Element type: Four side panels each incorporating free radiating spiral wire elements embedded in vacuum formed low thermal mass ceramic fibre insulation
• Dual display PID temperature controller/programmer with eight segments (type Eurotherm 2416CG)
• Type N thermocouple
• 415-240 volts three phase with neutral, 12kW
