Easy one handed operation, including function selection and button pushing even with a glove on. In addition to the standard measurement of volts , amps , frequency, resistance, diode checking and continuity, these models also offers several unequaled functions including: True InRush®, Adapter function, Delta relative function, Temperature measurement and more.

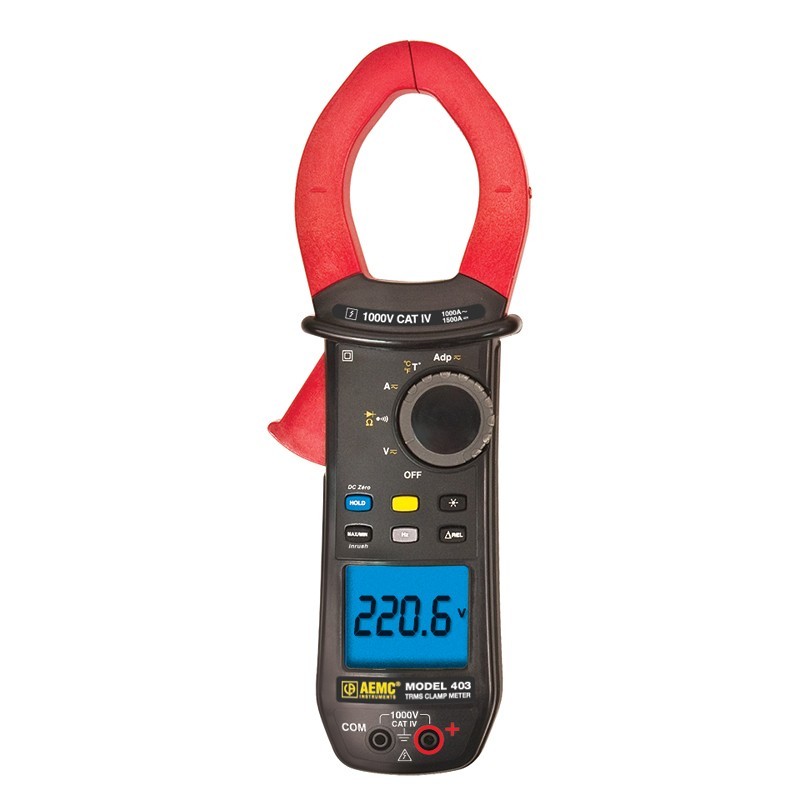

• Model 403 measures up to 1000Amps AC
• Model 403 has 1.89” jaw opening
• Safety rated to 1000V CAT IV
• IP54 Rated (dust and water spray)
• 10,000-count blue electro-luminescent backlit display
• Measures up to 1000VAC, 1000VDC and
ACplus DC with resolution to 10mV
• Measures temperature in °F or °C using a
K-type Thermocouple
• Measures frequency to 20kHz with 0.1Hz resolution
• Auto selects AC or DC voltage mode
• True InRush® current measurement with
1mS capture
• Delta relative function for tracking deviation from reference values
• Adapter function to accept inputs from sensors and transducers with a millivolt output with user
programmable scaling
| Product Includes | Includes Test leads, test probes, alligator clips, temp sensor, soft case and four “AA” batteries |
| Specifications |
Measurement Method: TRMS (AC) Autorange: Yes Automatic AC/DC Detection: Yes DC Volts: 0.15 to 1400V Electrical safety: IEC 61010 1000V CAT IV |
| size | 10.70 x 3.62 x 1.61" |
| Shipping Weight | 1.2000 |
| Power Supply | Four 1.5V AA Batteries |
| Manufacturer | AEMC |
| MPN | 403 |
| Manufacturer Warranty | one year |
