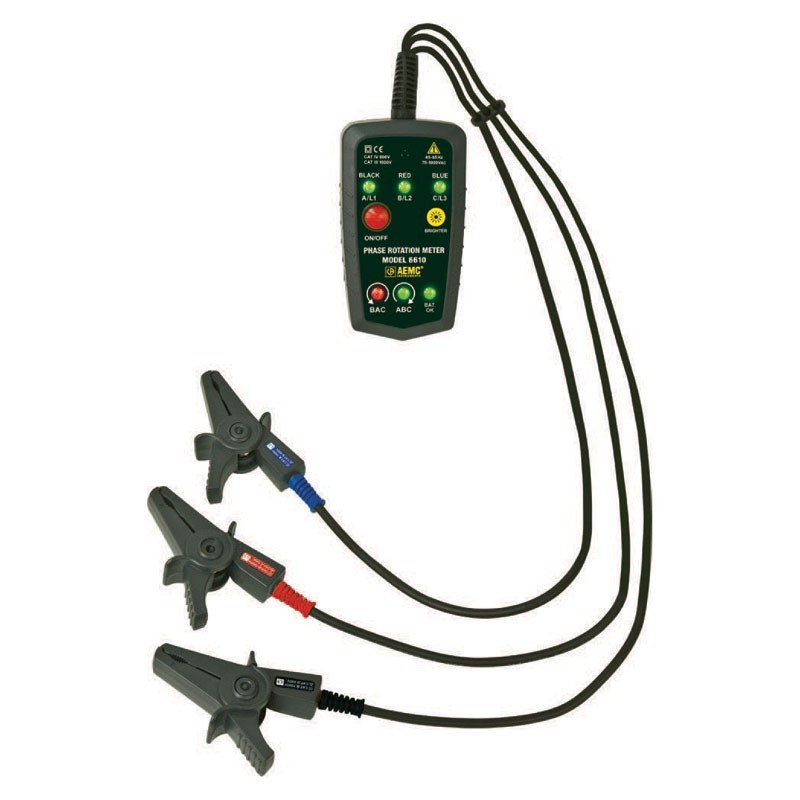

The Phase Rotation Meter Model 6610 is an essential tool for any installation, inspection and maintenance facility. The Model 6610 is designed to identify phase rotation on 3-phase systems and identify live and open/de-energized phases. The phase order is determined as soon as the leads are connected. Presence of live wires and phase sequence are informed by LED indication and a buzzer as soon as detection has occurred. The Model 6610 is ideal for installing rotating machinery or motors, and for checking generator output.

Features

• Non-contact (no metal contact points)


• Operating voltage: 75 to 1000VAC


• Frequency range: 45 to 65Hz


• Phase rotation LED indicators (ABC or BAC)


• Bright LED indication Live or Open Phase (A, B, C)


• Includes three attached color-coded test leads with alligator clips for easy connection to the device under test


• Clipping the non-electrical contact alligator sensor clips onto the insulation of the phase conductor promotes operator safety during measurement


• Low battery indicator


• Back cover includes a magnet feature that can mount the instrument onto an AC distribution panel for easy measurement


• EN61010-1; 1000V CAT III; 600V CAT IV
