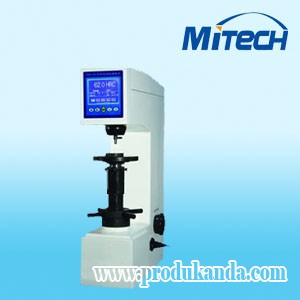

MITECH HRMS-45 Digital Superficial Rockwell Hardne

Harga :

CALL

Merk :

MITECH

Pengiriman :

1 hari sejak pembayaran

Lokasi :

Jawa Barat - Bekasi

Dilihat :

216 Kali

Update Terakhir :

04-02-2016 16:22

Dapatkan Spesifikasi Harga MITECH HRMS-45 Digital Superficial Rockwell Hardne Produk Terbaik dari ANDALAN PRIMA SEJAHTERA LABORATORY EQUIPMENT, CHEMICAL, GLASWARE, MEASURING AND TEST

Detail Produk

HRMS-45 Digital Superficial Rockwell Hardness Tester adopts novel-designed large LCD screen to display, as well as menu structure. It mainly functions are as follows: 1. Selection of Rockwell hardness scales, 2. Exchange hardness values among hardness scales, 3. Output the results of hardness measurement with printer, 4. RS-232 hyper terminal setting is with good reliability, excellent operation and easy watching.

Usage Range
Surface hardened steel, surface heat treating and chemical treating materials, copper, aluminum alloy sheet, zinc layers, chrome layers, tin layers, bearing steel, cold and hard casting parts, etc.

Technical Specifications

Superficial Rockwell Scales:HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

Initial Testing Force:3Kg (29.42N)
Testing Force:15Kg (147.1N), 30Kg (294.2N), 45Kg (441.3N)

Exchange Scales:Superficial Rockwell, Brinell, Vickers

Indication of Hardness Value:Digital Display with Large LCD Screen

Data Output:Inside Printer and RS-232 Interface

Duration Time:0~60S

Max Height of Specimen:170mm

Overall Dimension:520×240×720mm
Net Weight:80kg

Power supply:AC220V±5%，50~60Hz

Carried Standard:GB/T230.2,GB/T 230.2 Chinese Standard

JJG112 Inspection Rule

Standard Accessories
Diamond Rockwell Indenter, Diameter 1.5875mm Hard Alloy Steel Ball Indenter, Large Testing Table , Medium Testing Table and V-shaped Testing table, HR30N and HR30T Hardness Blocks, RS-232 Interface, Power Cable, etc.
