- Trademark: Mitech
- Origin: Beijing, China (Mainland)
- HS Code: 902410200
Product Description

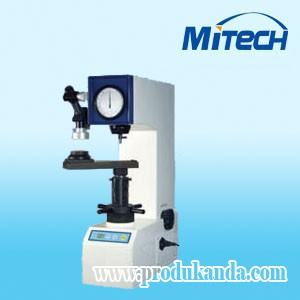

HRS-150L digital Rockwell Hardness Tester adopts novel-designed large LCD screen to display, as well as menu structure. It mainly functions are as follows:
1. Selection of Rockwell hardness scales,
2. Choice of plastics Rockwell scales (special requirement, supply accord to sales contract),
3. Exchange hardness values among hardness scales,
4. Output the results of hardness measurement with printer,
5. RS-232 hyper terminal setting is with good reliability, excellent operation and easy watching.
Usage Range:
Hardened and surface hardened steel, hardening and tempering steel, tempered steel, cold and hard casting parts, forging parts, hard alloy steel, aluminum alloy, bearing steel, carburized steel sheet, etc.
1. Selection of Rockwell hardness scales,
2. Choice of plastics Rockwell scales (special requirement, supply accord to sales contract),
3. Exchange hardness values among hardness scales,
4. Output the results of hardness measurement with printer,
5. RS-232 hyper terminal setting is with good reliability, excellent operation and easy watching.
Usage Range:
Hardened and surface hardened steel, hardening and tempering steel, tempered steel, cold and hard casting parts, forging parts, hard alloy steel, aluminum alloy, bearing steel, carburized steel sheet, etc.
| Rockwell Scales | HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK |
| Initial Testing Force | 10Kg(98.07N,) |
| Testing Force | 60Kg(588N),100Kg(980N),150Kg(1471N) |
| Exchange Scales | Superficial Rockwell, Brinell, Vickers |
| Indication of Hardness Value | Digital Display with Large LCD Screen |
| Data Output | Inside Printer and RS-232 Interface |
| Duration Time | 0~60S |
| Max Height of Specimen | 400mm |
| Overall Dimension | 520×240×720mm L X W X H |
| Net Weight | About 80kg |
| (Power supply | AC220V±5%,50~60Hz |
| Carried Standard | GB/T 230.2 Chinese Standard JJG112 Inspection Rule |
| Standard Accessories | Diamond Rockwell Indenter, Diameter 1.5875mm Hard Alloy Steel Ball Indenter, Large Testing Table , Medium Testing Table and V-shaped Testing Table, HRC 2pcs and HRB Hardness Blocks, RS-232 Interface, Power Cable, etc. |
