- Model NO.: HVS-50
- Trademark: Mitech
- Origin: Beijing, China (Mainland)
- HS Code: 902410200
Product Description

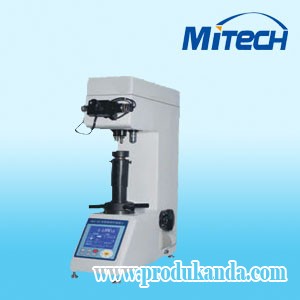

HVS-5 HVS-10 HVS-30 HVS-50 Digital Micro Vickers Hardness Tester adopts large LCD screen to display and menu type structure to choice hardness scales HV or HK, store testing results and data procession automatically, as well as output by printer. By means of interface of RS-232, the instrument can be linked with computer. It can be assembled a device to exchange hardness values among scales(Z).
Usage Range:
Heat treated layer, carbonized layer, hardened hard layers, superficial coating, steels, non-ferrous metal, micro and thin shaped components.
Usage Range:
Heat treated layer, carbonized layer, hardened hard layers, superficial coating, steels, non-ferrous metal, micro and thin shaped components.
| TYPE PROJECT | HVS-5 | HVS-10 | HVS-30 | HVS-50 |
| Testing Force | 2.94N(0.3Kgf),4.9N(0.5Kgf), 9.80N(1Kgf),19.6N(2.0Kgf), 29.4N(3.0Kgf),49.0N(5.0Kgf) | 2.94N(0.3Kgf),4.9N(0.5Kgf), 9.80N(1Kgf),29.4N(3Kgf), 49.0N(5Kgf),98.0N(10Kgf) | 9.8N(1.0Kgf),29.4N(3Kgf), 49.0N(5.0Kgf),98N(10Kgf), 196N(20Kgf),294N(30Kgf) | 9.8N(1.0Kgf),49.0N(5.0Kgf), 98N(10Kgf),196N(20Kgf), 294N(30Kgf),490N(50Kgf) |
| Min Measuring Unit | 0.0625μm | 0.0625μm | 0.125μm | 0.125μm |
| Magnification of Microscope | 100X(For Observation) 200X(For Measurement) | 100X(For Observation) 100X(For Measurement) | ||
| Data Output | (Inside Printer and 232 Interface | |||
| Loading Control | Automatically (load, keep, unload) | |||
| Net Weight | 35kg | |||
| Max Height of Speciment | 160mm | |||
| Max depth of speciments | 135mm | |||
| Power Supply | AC220V±5%,50~60Hz | |||
| Carried Standard | GB/T4340(1.2) Chinese Standard | |||
| Standard Accessories | Lens 20x.10x, Vickers indenter ,Digital Measuring eyepiece 10x,Large Testing Table , Medium Testing Table and V shaped Testing Table,Power Cable | Lens 10x, Vickers indenter ,Digital Measuring eyepiece 10x,Large Testing Table , Medium Testing Table and V shaped Testing Table,Power Cable | ||
