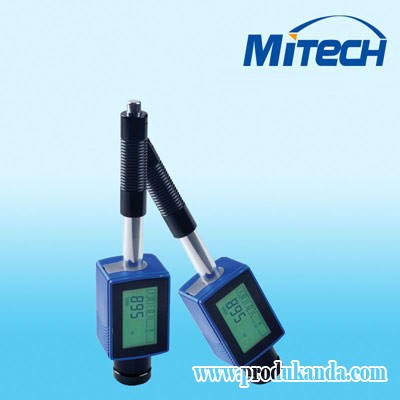

With the Leeb hardness measuring principle, the pen-type hardness tester MH100 can do test easily and quickly to various metallic material. It can show the hardness measuring value immediately and can switch to other scales freely.
SPECIFICATION
Measuring Range: (170-960)HLD, (17-68.5)HRC, (19-651)HB, (80-976)HV, (30-100)HS, (59-85)HRA, (13 -100)HRB
Measuring Direction ：Supprt 0~360º
Hardness Scales：HL、HB、 HRB、 HRC、HRA、HV、 HS
Display：HD Dot matrix LCD and LED backlight
Data Memory：Max. 500 groups（relative to impact device 32～1）
Working Power：3.6V（Integrated Lithium battery and rechargable circuit
Continous Working Period：about 200 hours （without using backlight）
Communciation Interface：USB1.1 port
APPLICABLE MATERIALS
Applicable materials: steel and cast steel, cold work tool steel, stainess stee;. Grey cast iron, nodular cast iron, cast aluminum alloys,BRASS (copper-zinc alloys), BRONZE(copper-aluminum/tin alloys), pure copper and forged steel
WORKING CONDITION
Operating temperature -20℃～＋60℃；
Storage temperature：-30℃～＋60℃
Relative humidity: ≤90％；
The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.
STANDARD CONFIGURATIONS
1.Main Unit 1
2.Cleaning brush 1
3.Small support ring 1
4.Standard block 1
5.Accompany documents (including manual, quality certifcate, warranty card and packing list ) 1 set
6.ABS instrument case 1
