| Product Includes | 3 color coded terminals |
| Specifications |
Range: 0-20Ohms , 0-200Ohms , 0-2kOhms Resolution: 10mOhms, 100mOhms, 1Ohms Test Current: 10mA , 1mA @128Hz, 0.1mA Accuracy: ±2% rdg ±1ct, (0-200 Ohm), ±3% rdg. ±3 ct (to 2kOhm) Display: 0.71” 3.5 digit LCD |
| size | 8.7 x 5.4 x 5.9" |
| Shipping Weight | 7.0000 |
| Power Supply | Eight 1.5V "AA" batteries |

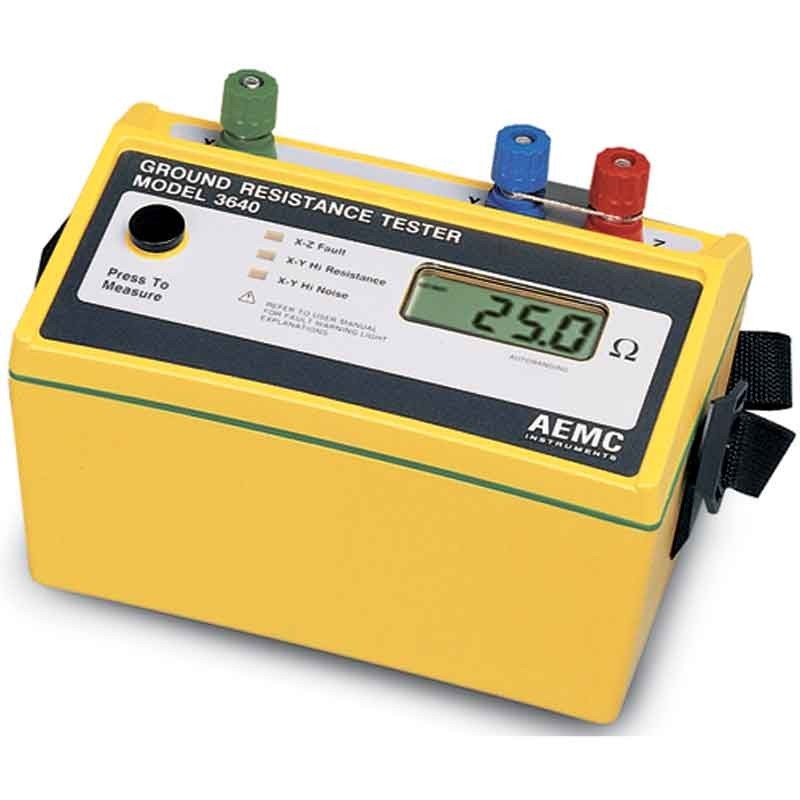

| Manufacturer | AEMC |
| MPN | 3640 |
| Mitchell Catalog Number | 9Z213515,8Z213515,7Z213515,WB213515 |
- Fall-of-Potential method
- Measures ground resistance (2- and 3-Point)
- Autoranging: automatically selects the optimum range
- Designed to reject high levels of noise and interference
- Extremely simple to operate: connect - press - read
- LED on faceplate informs operator of high input noise, high auxiliary rod resistance and fault connections
- Battery powered
- Rugged dustproof and rainproof field case
- Color-coded terminals
- May be used for continuity tests on bonding
