Key Specifications
| Description |

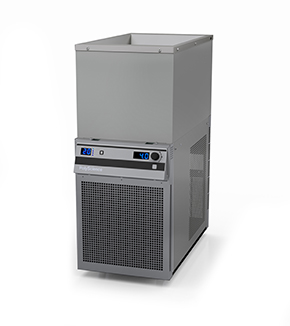

Cryoprecipitate Bath |
|---|---|
| Controller Type |
Digital
|
| Display |
Two Digital Readouts
|
| Working Temperature Range °C |
Setpoint Fixed@ 4°C
|
| Temperature Stability °C |
±0.1°
|
| Temperature Calibration Capability |
1-point
|
| Working Access (L x W x D) (cm) |
52.4 x 33 x 30.5 cm
|
Key Features
- Preset to 4°C thawing temperature
- Thaws up to 24 units of FFP or Whole Blood (WB) simultaneously
- Bright temperature and elapsed time displays
- Built-in over-temperature and flow alarms
- Calibration capability
- High efficiency fluid filter, removable air filter, reservoir drain
- Removable, center-hinged reservoir cover
Related Fluids & Accessories
Common Specifications
| Working Temperature Range °F |
Setpoint Fixed@ 39.2°
|
|---|---|
| Working Temperature Range °C |
Setpoint Fixed@ 4°C
|
| Reservoir Capacity (gallons) |
13.8
|
| Reservoir Capacity (liters) |
52
|
| Reservoir/Tank Material |
Stainless Steel
|
| Reservoir Cover |
Included
|
| Cleanable Air Filter |
Yes
|
| Working Access (L x W x D) (inches) |
20.6 x 13 x 12 in
|
| Working Access (L x W x D) (cm) |
52.4 x 33 x 30.5 cm
|
| Temperature Stability °F |
±0.2°
|
| Temperature Stability °C |
±0.1°
|
| Display |
Two Digital Readouts
|
| Display Resolution (Set) |
0.1
|
| Display Resolution (Read) |
0.1
|
| Over-Temperature Protection / Failsafe Heater Control |
Yes
|
| Low Liquid Level Protection | Yes |
| Reservoir Drain |
Yes
|
| Maximum Ambient Temperature °F |
95°
|
| Maximum Ambient Temperature °C |
35°
|
| Overall Dimensions (L x W x H) (inches) |
28 x 14.5 x 36.6 in
|
| Overall Dimensions (L x W x H) (cm) |
71.1 x 37 x 93 cm
|
| Shipping Weight (pounds) |
200.0
|
| Shipping Weight (kilograms) |
90.6
|
| Catalog Page Number |
75
|
60 Hz Only
| Part Number |
6260B1CRY10C
|
|---|---|
| Electrical Requirements (VAC/Hz/Ph/A) |
120/60/1/11.25
|
| Regulatory Approvals |
CSA
|
50 Hz Only
| Part Number |
6250B2CRY30E
|
|---|---|
| Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/6.3
|
| Regulatory Approvals |
CE
|
