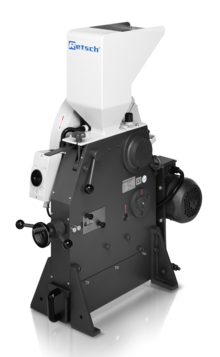

RETSCH Jaw Crusher BB 100
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
30-06-2016 11:28
Dapatkan Spesifikasi Harga
RETSCH Jaw Crusher BB 100 Produk Terbaik dari
ANDALAN PRIMA SEJAHTERA LABORATORY EQUIPMENT, CHEMICAL, GLASWARE, MEASURING AND TEST
Detail Produk
Product Advantages
- excellent crushing performance
- wide range of materials for contamination free grinding
- wear compensation with zero-point adjustment
- continuous gap width setting
- overload protection
- no-rebound feed hopper with quick-release clamp
- brake motor with safety switch
- easy-to-clean crushing chamber
- continuous grinding
- connector for dust extraction
Features
| Applications |
coarse and pre-crushing |
| Field of application |
chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material |
medium-hard, hard, brittle, tough |
| Size reduction principle |
pressure |
| Material feed size* |
< 50 mm |
| Final fineness* |
< 4 mm |
| Material of grinding tools |
manganese steel, stainless steel, tungsten carbide, steel 1.1750 (for heavy-metal free grinding) |
| Jaw width |
60 x 60 mm |
| Gap width setting |
0 - 20 mm |
| Gap width display |
scale |
| Zero point adjustment |
yes |
| Hinged hopper |
yes |
| Dust extraction unit |
yes |
| Central lubrication |
- |
| Process line version |
- |
| Collector capacity |
2 l |
| Drive |
1-phase motor / 3-phase motor |
| Drive power |
0.75 kW |
| Electrical supply data |
different voltages |
| Power connection |
1-phase / 3-phase |
| Protection code |
IP 54 |
| W x H x D closed |
320 x 960 x 800 mm |
| Net weight |
~ 137 kg |
| Remark weight (without hopper etc.) |
0.75 kW |
| Standards |
CE |
