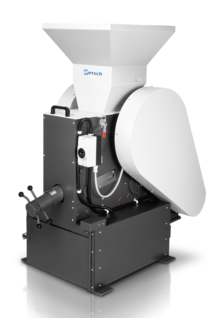

retsch Jaw Crusher BB 300
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
30-06-2016 11:35
Dapatkan Spesifikasi Harga
retsch Jaw Crusher BB 300 Produk Terbaik dari
ANDALAN PRIMA SEJAHTERA LABORATORY EQUIPMENT, CHEMICAL, GLASWARE, MEASURING AND TEST
Detail Produk
Product Advantages
- excellent crushing performance
- wear compensation with zero-point adjustment
- infinitely gap width setting
- overload protection
- wide range of materials for contamination free grinding
- no-rebound feed hopper with quick-release clamp
- brake motor with safety switch
- easy-to-clean crushing chamber
- connector for dust extraction
- central lubrication
- suitable for integration in automatic installations
- special version for grinding semi-conductor materials
Features
| Applications |
coarse and pre-crushing |
| Field of application |
chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material |
medium-hard, hard, brittle, tough |
| Size reduction principle |
pressure |
| Material feed size* |
< 130 mm |
| Final fineness* |
< 5 mm |
| Material of grinding tools |
manganese steel, stainless steel, tungsten carbide, steel 1.1750 (for heavy-metal free grinding) |
| Jaw width |
138 x 198 mm |
| Gap width setting |
1 - 40 mm |
| Gap width display |
scale |
| Zero point adjustment |
yes |
| Hinged hopper |
yes |
| Dust extraction unit |
yes |
| Central lubrication |
yes |
| Process line version |
optional |
| Collector capacity |
27.5 l / 35.4 l |
| Drive |
3-phase motor |
| Drive power |
3.0 kW |
| Electrical supply data |
different voltages |
| Power connection |
3-phase |
| Protection code |
IP 54 |
| W x H x D closed |
670 x 1450 x 1600 mm |
| Net weight |
~ 700 kg |
| Standards |
CE |
