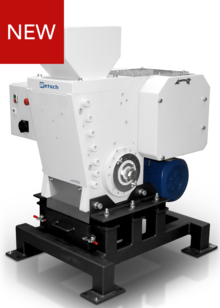

RETSCH Jaw Crusher BB 500 XL
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
30-06-2016 13:50
Dapatkan Spesifikasi Harga
RETSCH Jaw Crusher BB 500 XL Produk Terbaik dari
ANDALAN PRIMA SEJAHTERA LABORATORY EQUIPMENT, CHEMICAL, GLASWARE, MEASURING AND TEST
Detail Produk
Product Advantages
- high crushing ratio 50:1
- continuous gap width setting
- overload protection
- wide range of materials for contamination free grinding
- removable no-rebound feed hopper
- easy-to-clean crushing chamber
- continuous and batch-wise crushing
- connector for dust extraction
- central lubrication (optional)
- suitable for integration in automatic installations
- special version for grinding semi-conductor materials
Features
| Applications |
coarse and pre-crushing |
| Field of application |
chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material |
medium-hard, hard, brittle, tough |
| Size reduction principle |
pressure |
| Material feed size* |
< 110 mm |
| Final fineness* |
90% < 0.5 mm |
| Material of grinding tools |
manganese steel |
| Jaw width |
250 x 130 mm |
| Gap width setting |
0 - 11 mm |
| Gap width display |
scale |
| Hinged hopper |
yes |
| Dust extraction unit |
yes |
| Central lubrication |
optional |
| Process line version |
optional |
| Collector capacity |
9.5 l |
| Drive |
3-phase motor |
| Drive power |
7.5 kW |
| Electrical supply data |
different voltages |
| Power connection |
1-phase / 3-phase |
| Protection code |
IP 55 |
| W x H x D closed |
930 x 1400 x 1080 mm |
| Net weight |
~ 1000 kg |
| Standards |
CE |
