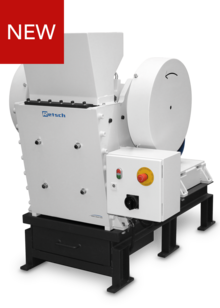

RETSCH Jaw Crusher BB 600 XL
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
30-06-2016 13:52
Dapatkan Spesifikasi Harga
RETSCH Jaw Crusher BB 600 XL Produk Terbaik dari
ANDALAN PRIMA SEJAHTERA LABORATORY EQUIPMENT, CHEMICAL, GLASWARE, MEASURING AND TEST
Detail Produk
Product Advantages
- high crushing ratio
- high throughput up to 3,500 kg/h
- adjustable gap width setting
- overload protection
- size of breaking jaws 600 mm high / 400 mm wide
- no-rebound feed hopper
- easy-to-clean crushing chamber
- continuous and batch-wise crushing
- connector for dust extraction
- central lubrication (optional)
- suitable for integration in automatic installations
Features
| Applications |
coarse and pre-crushing |
| Field of application |
chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material |
medium-hard, hard, brittle, tough |
| Size reduction principle |
pressure |
| Material feed size* |
< 350 x 170 mm |
| Final fineness* |
< 6 mm |
| Material of grinding tools |
manganese steel |
| Jaw width |
400 x 240 mm |
| Gap width setting |
6 - 60 mm with spacer plates |
| Dust extraction unit |
yes |
| Central lubrication |
optional |
| Process line version |
optional |
| Collector capacity |
30 l |
| Drive |
3-phase motor |
| Drive power |
15 kW |
| Electrical supply data |
different voltages |
| Power connection |
3-phase |
| Protection code |
IP 55 |
| W x H x D closed |
925 x 1600 x 1370 mm |
| Net weight |
~ 1350 kg |
| Standards |
CE |
