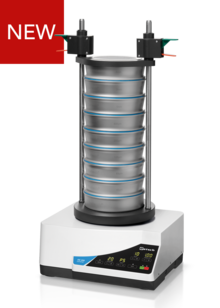

RETSCH Vibratory Sieve Shaker AS 200 control Produk Terbaik dari
ANDALAN PRIMA SEJAHTERA LABORATORY EQUIPMENT, CHEMICAL, GLASWARE, MEASURING AND TEST
Detail Produk
Product Advantages
- NEW: up to 99 sieving programs
- NEW: low noise operation thanks to optimized control
- NEW: USB connection for use of EasySieve software
- suitable for dry and wet sieving
- excellent separation efficiency even with short sieving times
- efficient electromagnetic drive
- 3-D throwing motion which ensures optimum use of the open sieve area and lets the sample move equally over the whole sieving surface
- setting of sieve acceleration "g" for comparable and reproducible sieving results worldwide
- sieve stack up to 550 mm height
- free digital adjustment of all process parameters (time, amplitude or sieve acceleration, interval)
- interval operation
- optional sieve software EasySieve for control of the shaker, easy evaluation and documentation of results
- fulfils all criteria for measuring equipment related to ISO 9001
- calibration certificate
- easy operation, ergonomic design
- maintenance-free
Features
| Applications |
separation, fractioning, particle size determination |
| Field of application |
agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals |
| Feed material |
powders, bulk materials, suspensions |
| Measuring range* |
20 µm - 25 mm |
| Sieving motion |
throwing motion with angular momentum |
| Max. batch / feed capacity |
3 kg |
| Max. number of fractions |
11 / 23 |
| Max. mass of sieve stack |
6 kg |
| Amplitude |
digital, 0.2 - 3 mm |
| Controlled amplitude |
yes |
| Sieve acceleration |
1.0 - 15.1 g |
| Time display |
digital, 1 - 99 min |
| Interval operation |
1 - 99 s |
| Storable SOPs |
99 |
| Suitable for dry sieving |
yes |
| Suitable for wet sieving |
yes |
| USB interface |
yes |
| Including test certificate / can be calibrated |
yes |
| Suitable sieve diameters |
100 mm / 150 mm / 200 mm / 203 mm (8") |
| Max. height of sieve stack |
550 mm |
| Clamping devices |
"standard", "comfort", each for wet and dry sieving |
| Protection code |
IP 54 / IP 20 |
| Electrical supply data |
100-240 V, 50/60 Hz |
| Power connection |
1-phase |
| W x H x D |
417 x 212 x 384 mm |
| Net weight |
~ 35 kg |
| Standards |
CE |
