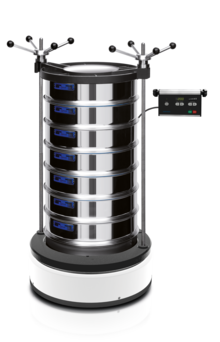

RETSCH Vibratory Sieve Shaker AS 450 basic
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
19-07-2016 09:48
Dapatkan Spesifikasi Harga
RETSCH Vibratory Sieve Shaker AS 450 basic Produk Terbaik dari
ANDALAN PRIMA SEJAHTERA LABORATORY EQUIPMENT, CHEMICAL, GLASWARE, MEASURING AND TEST
Detail Produk
Product Advantages
- suitable for dry and wet sieving
- excellent separation efficiency even with short sieving times
- efficient electromagnetic drive
- 3-D throwing motion which ensures optimum use of the open sieve area and lets the sample move equally over the whole sieving surface
- up to 11 fractions in one sieving operation
- free digital adjustment of all process parameters (time, amplitude, interval)
- mobile operation panel for comfortable, intuitive handling
- maintenance-free
- easy operation, ergonomic design
- robust steel housing
Features
| Applications |
separation, fractioning, particle size determination |
| Field of application |
chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material |
powders, bulk materials |
| Measuring range* |
25 µm - 125 mm |
| Sieving motion |
throwing motion with angular momentum - 3D movement |
| Max. batch / feed capacity |
15 kg |
| Max. number of fractions |
11 / 8 |
| Max. mass of sieve stack |
50 kg |
| Amplitude |
digital, 0 - > 2 mm |
| Time display |
digital, 0 - 99 min |
| Interval operation |
yes |
| Storable SOPs |
1 |
| Suitable for dry sieving |
yes |
| Suitable for wet sieving |
yes |
| Serial interface |
- |
| Suitable sieve diameters |
400 mm / 450 mm |
| Max. height of sieve stack |
830 mm |
| Clamping devices |
"standard" (two models, one for dry, one for wet sieving) |
| Electrical supply data |
different voltages |
| Power connection |
1-phase |
| W x H x D |
680 x 280 x 680 mm |
| Net weight |
~ 140 kg |
| Standards |
CE |
