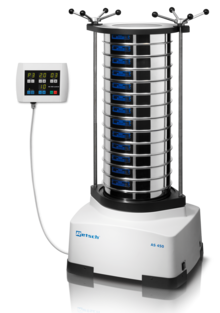

RETSCH Vibratory Sieve Shaker AS 450 control
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
19-07-2016 09:50
Dapatkan Spesifikasi Harga
RETSCH Vibratory Sieve Shaker AS 450 control Produk Terbaik dari
ANDALAN PRIMA SEJAHTERA LABORATORY EQUIPMENT, CHEMICAL, GLASWARE, MEASURING AND TEST
Detail Produk
Product Advantages
- suitable for dry and wet sieving
- excellent separation efficiency even with short sieving times
- efficient electromagnetic drive
- 3-D throwing motion which ensures optimum use of the open sieve area and lets the sample move equally over the whole sieving surface
- CET Technology for controlled amplitude even with high loads (up to 25 kg)
- up to 14 fractions in one sieving operation
- free digital adjustment of all process parameters (time, amplitude or sieve acceleration, interval)
- memory for up to 9 SOPs
- mobile operation panel for comfortable handling
- optional software EasySieve for control through RS232 serial interface, easy evaluation and documentation of results
- fulfils all criteria for measuring equipment related to ISO 9001
- maintenance-free
- easy operation (clamping), ergonomic design
- Dry and wet sieving in one model
Features
| Applications |
separation, fractioning, particle size determination |
| Field of application |
chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material |
powders, bulk materials, suspensions |
| Measuring range* |
25 µm - 125 mm |
| Sieving motion |
throwing motion with angular momentum - 3D movement |
| Max. batch / feed capacity |
25 kg |
| Max. number of fractions |
13 / 9 (min. 3) |
| Max. mass of sieve stack |
50 kg |
| Amplitude |
digital, 0.2 - > 2.2 mm |
| Sieve acceleration |
1 -> 11 g |
| Time display |
digital, 1 - 99 min |
| Interval operation |
10 - 99 s |
| Storable SOPs |
9 |
| Suitable for dry sieving |
yes |
| Suitable for wet sieving |
yes |
| Serial interface |
yes |
| Suitable sieve diameters |
400 mm / 450 mm |
| Max. height of sieve stack |
963 mm |
| Clamping devices |
"standard", "comfort", each for wet and dry sieving |
| Electrical supply data |
different voltages |
| Power connection |
1-phase |
| W x H x D |
714 x 435 x 658 mm |
| Net weight |
~ 200 kg |
| Documentation |
Operation & Application Video |
| Standards |
CE |
