Temp Tracker
Model 46203

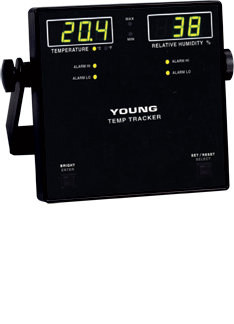

Measured values are displayed on the front panel: temperature on the left, relative humidity or dew point on the right. Maximum and minimum values are saved and can be viewed at any time. The Temp Tracker includes the following useful features: fully-programmable alarms, calibrated voltage outputs, and RS-485 output. Input for the Temp Tracker is supplied by Model 41382LC2 Relative Humidity/ Temperature Probe which provides a convenient 4-20 mA current output signal for each channel. (Model 41003P Radiation Shield is suggested)
 |
 |
| Brochure | 46203 Manual |
Specifications
Range:
Temperature: -50.0 to 150.0˚F, -50.0 to 50.0˚C
Relative Humidity: 0 to 100%
Display Resolution:
Temperature: 0.1˚C, 0.1˚F
Relative Humidity: 1%
Dew Point: 1˚C, 1˚F
Compatible Sensors:
Model 41382LC2 (T & RH)
Model 41342LC (T only)
Voltage Outputs: 0-5 VDC Full Scale for T & RH
Alarm Relays: Normally open contacts for T & RH
Remote Displays:16 maximum
Power Requirement: 12 to 30 VDC, 4.5 W
Dimensions: 144 mm (5.65 in) x 144 mm (5.65 in) x 36 mm (1.4 in)
Weight: 1 lb (0.45 kg)
Shipping Weight: 3 lb (1.4 kg)
