Serial Output
Wind Monitor
Model 09101 / 09106

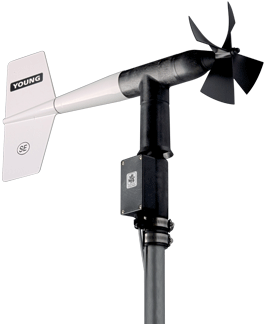

The wind speed sensor is a four blade helicoid propeller. Propeller rotation induces a variable frequency signal in a stationary coil. The raw signal is converted to a digital serial output by the onboard microprocessor circuit. The wind direction sensor is a durable molded vane. The absolute encoder retains direction orientation even if power is interrupted. Serial output or voltage output signal is selected simply by moving an internal jumper. Housing parts are UV stabilized thermoplastic. Fittings are stainless steel and anodized aluminum. The instrument mounts on standard 1 inch pipe.
The Model 09106 Wind Monitor-SE-MA is a modified version of the 09101 unit designed for the rigors of the marine environment.
 |
 |
|
| Brochure | 09101 Manual |
09106 Manual |
Range:
Wind speed: 0-100 m/s (224 mph)
Wind direction: 0-360 degrees
Resolution:
Wind speed: 0.1 unit (m/s, knots, mph, km/h)
Wind direction: 1 degree
Accuracy:
Wind speed: ±0.3 m/s (0.6 mph) or 1% of reading
Wind direction: ±2 degrees
Threshold:*
Propeller: 1.0 m/s (2.2 mph) Vane: 1.1 m/s (2.5 mph)
Available Outputs:
Voltage Output:
WS: 0-5 VDC for 0-100 m/s
WD: 0-5 VDC for 0-540˚
Serial RS-485:
RMY, NCAR, or NMEA protocols
Polled or continuous output
Power Requirement:
11-24 VDC, 20 mA
Dimensions:
Overall: 37 cm (14.6 in) H x 55 cm (21.6 in) L
Propeller: 18 cm (7.0 in) diameter
Mounting: 34 mm (1.34 in) diameter (standard 1 inch pipe)
Weight: 1.0 kg (2.2 lbs), Shipping weight: 2.3 kg (5 lbs)
Operating Temperature: -50 to 50˚ C
