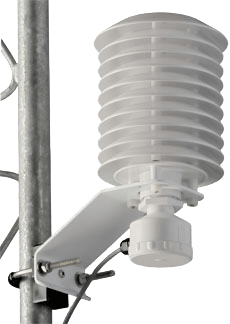

Multi-Plate Radiation Shield
Model 41003
The multiple plates have a unique profile that blocks direct and reflected solar radiation, yet permits easy passage of air. The plate material is specially formulated for high reflectivity, low thermal conductivity, and maximum weather resistance. The rugged U-bolt mounting clamp attaches easily to any vertical pipe up to 2 inches diameter. Model 41003 employs a universal clamp-type adapter to securely hold sensors up to 16 mm diameter. Model 41003P has a custom sized adapter to fit a sensor from 16 mm to 26 mm diameter (24 mm is supplied unless otherwise specified). A variety of temperature and humidity probes are available.
 |
 |
| Brochure | 41003 Manual |
Sensor Types: Accommodates temperature and humidity sensors up to 26 mm (1 in) diameter
Radiation Error:
@ 1080 W/m2 intensity- Dependent on wind speed
0.4 ˚C (0.7 ˚F) RMS @ 3 m/s (6.7 mph)
0.7 ˚C (1.3 ˚F) RMS @ 2 m/s (4.5 mph)
1.5 ˚C (2.7 ˚F) RMS @ 1 m/s (2.2 mph)
Construction:
UV stabilized white thermoplastic plates, aluminum mounting bracket, white powder coated Stainless steel U-bolt clamp
Dimensions:
13cm (5.1 in) diameter x 26 cm (10.2 in) high
Mounting fits vertical pipe 25-50 mm (1-2 in) diameter
Weight:
Net weight: 0.7 kg (1.5 lb)
Shipping Weight: 1.4 kg (3 lb)
