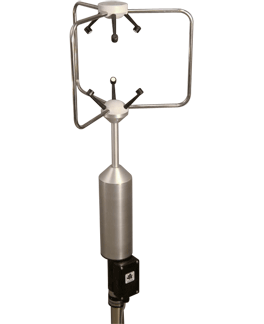

Ultrasonic Anemometer
Model 81000RE / Model 81000VRE
Both models have an extended mast that separates the transducer array from the instrument body. Each sensor is individually wind-tunnel calibrated. Wind and sonic temperature data is available on four voltage output channels (Model 81000RE). Serial RS-232 and RS-485 are available as well. The sensor installs on standard 1 inch pipe.
 |
|
| 81000RE Manual |
81000VRE Manual |
Wind Speed: 0 to 40 m/s (0 to 90 mph)
Resolution: 0.01 m/s
Threshold: 0.01 m/s
Accuracy: ± 1% ± 0.05m/s (30 m/s, ± 3% (40 m/s)
Wind Direction: 0 to 360 degrees
Elevation Range: ± 60 degrees
Resolution: 0.1 degree
Accuracy: ± 2 degrees (30 m/s), ± 5 degrees (40 m/s)
Speed of Sound: 300 to 360 m/s
Resolution: 0.01 m/s
Accuracy: ± 0.1% ± 0.05 m/s (30 m/s)
Sonic Temperature: -50 to +50 ˚C
Resolution: 0.01 m/s
Accuracy: ± 2˚C (30 m/s)
Serial Output:User Programmable ASCII RS-232 or RS-485
1200 to 38400 baud
4 to 32 Hz (user-selected)
Units: m/s, cm/s, mph, knots, km/h
Analog Voltage Outputs (81000RE):
4 voltage outputs, 0 to 5000 mV
Voltage Inputs (81000VRE):
Range:
0 to 5000mV, V1 & V2
0 to 1000mV, V3 & V4
Resolution: 1 part in 4000
Accuracy: ±0.1% of full scale
Power Requirement: 12 to 24 VDC, 110 mA
Operating Temperature: -50 to +50 ˚C
Dimensions:
70cm high x 17cm radius (3 support arms)
Weight: 1.7 kg (3.8 lbs)
Shipping Weight: 5 kg (11 lbs)
