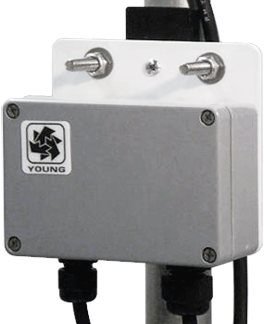

Voltage & Current Interfaces
05603C, 05631C, 05608C, 05638C
0-5 VDC OUTPUTS
The Wind Sensor Interface provides calibrated analog DC voltage signals for wind speed and wind direction.
Specifications
Power Requirement: 8-24 VDC (5 mA @ 12 VDC)
Temperature Range: -50 to 50°C (-58 to 122°F)
Inputs: Model 05106 Wind Monitor-MA
Outputs: 0 to 5.00 VDC
Wind Speed: 0 to 100 M/S, Wind Direction: 0 to 360°
Accuracy: ± 1% FS over temperature and supply voltage range.
Dimensions: 110 mm W x 75 mm H x 56 mm D (4.3 in W x 2.9 in H x 2.2 in D)
Mounting: U-bolt for vertical pipe 25-50mm (1- 2 in) Dia
MODEL 05631C - WIND LINE DRIVER - FOR USE WITH 05106
4-20 mA OUTPUTS
The Wind Line Driver converts signals from the wind sensor to 4 to 20 mA current loop values.
Specifications
Power Requirement: 12-30 VDC
Temperature Range: -50 to 50°C (-58 to 122°F)
Inputs: Model 05106 Wind Monitor-MA
Outputs: 4 to 20 mA
Wind Speed: 0 to 100 M/S, Wind Direction: 0 to 360°
Accuracy: ± 1% FS over temperature and supply voltage range.
Dimensions: 110 mm W x 75 mm H x 56 mm D (4.3 in W x 2.9 in H x 2.2 in D)
Mounting: U-bolt for vertical pipe 25-50mm (1- 2 in) Dia
 |
|
|
|
| 05603C Manual |
05608C Manual |
05631C Manual |
05638C Manual |
MODEL 05608C - WIND SENSOR INTERFACE - FOR USE WITH 05108
0-5 VDC OUTPUTS
The Wind Sensor Interface provides calibrated analog DC voltage signals for wind speed and wind direction.
Specifications
Power Requirement: 8-24 VDC (5 mA @ 12 VDC)
Temperature Range: -50 to 50°C (-58 to 122°F)
Inputs: Model 05108 Wind Monitor-HD
Outputs: 0 to 5.00 VDC
Wind Speed: 0 to 100 M/S, Wind Direction: 0 to 360°
Accuracy: ± 1% FS over temperature and supply voltage range.
Dimensions: 110 mm W x 75 mm H x 56 mm D (4.3 in W x 2.9 in H x 2.2 in D)
Mounting: U-bolt for vertical pipe 25-50mm (1- 2 in) Dia
MODEL 05638C - WIND LINE DRIVER - FOR USE WITH 05108
4-20 mA OUTPUTS
The Wind Line Driver converts signals from the wind sensor to 4 to 20 mA current loop values.
Specifications
Power Requirement: 12-30 VDC
Temperature Range: -50 to 50°C (-58 to 122°F)
Inputs: Model 05108 Wind Monitor-HD
Outputs: 4 to 20 mA
Wind Speed: 0 to 100 M/S, Wind Direction: 0 to 360°
Accuracy: ± 1% FS over temperature and supply voltage range.
Dimensions: 110 mm W x 75 mm H x 56 mm D (4.3 in W x 2.9 in H x 2.2 in D)
Mounting: U-bolt for vertical pipe 25-50mm (1- 2 in) Dia
