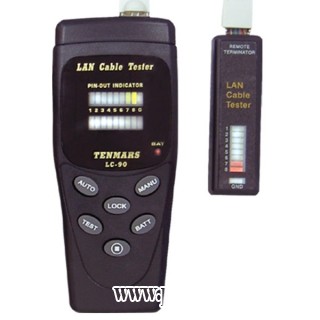

Product Description
- LCD display.
- Test pin configuration for 10/100 base-T cable, 10 base-2 cable, RJ45/RJ11 modular cables, AT and T 258 A cable, EIA/TIA 568A/568B cables and Token Ring Cables etc.
- Verify cable continuity, opens, shorts and miss-wired.
- Auto and manual scan function.
- Ground wire test.
- Locked status wire function.
- Detected defective wire warning (buzzer).
- Function Keys: ON/OFF, Test, Auto, Lock, Manual.
- Low battery indication
Application
- Test Pin Configuration for 10/100 Base-T Cable
- 10 Base-2 cable, RJ45/RJ11 modular cables
- Verify cable continuity, open, short and miss wired
- Auto and Manual Scan
- Ground Wire Test
Specification
|
Display |
LED |
|
Connectors |
RJ45 (8P8C) input/output |
|
Power Supply |
9 volt 006P battery |
|
Remote Terminators |
Sequence Number#1 |
|
Cable Types |
Unshielded Twisted Pair (UTP100, CAT III, IV,V |
| Foil-screened Twisted Pair (FTP100 and 120, CAT III, IV, V | |
| Shielded Twisted Pair (STP150 IBM Type 1 and 6) | |
|
Recognize Wiring Schemes |
EIA/TIA-568A/B, USOC, 10(100) Base/HUB, BNC/10 Base-2 |
| 10(100) Base-T, Token ring | |
|
Dimensions (instrument) |
130mm (L) x 56mm (W) x 38mm (D) |
|
Dimensions (remote) |
72mm (L) x 23mm (W) x 24mm (D) |
|
Weight |
250g approx. |
|
Accessories |
User's manual, carrying case, 9 volt battery, and one patch cable (RJ-45 to RJ-45) |
